The Sunburning & UV-A Intensity Meter is capable of measuring the UV-A and UV-B spectrum. |
|

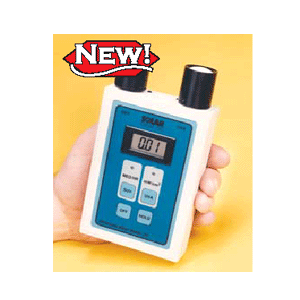

SUNBURNING & UV-A
INTENSITY METER
The Sunburning & UV-A Intensity Meter is capable of measuring the UV-A
and UV-B spectrum. The meter shows the intensity of UV-B (also called SUV
- Sunburning UV) in Minimal Erythemal Doses per Hour (MED/Hr), the accepted
clinical measure for sunburn potential. The UV-A detector measures the range
between 320-400 nm, displaying irradiance in mW/cm2. This unit features
a hold toggle that freezes the present reading, an auto shut off meter that
turns the unit off after 8 minutes with near zero reading, and 3 ft extension
cables for each detector.
METER SPECIFICATIONS:
UV-B (SUV) Readout range: 0 -19.99 MED/HR
UV-A Readout range: 0-19.99mW/cm2
Resolution: 0.01 MED/HR or mW/cm2
Operating temperature: 0 to +50¡ÆC
Power source: 9V alkaline battery
UV-B (SUV) Detector
Spectral Response 280-320nm
Operating Temperature -10¡ÆC to +60¡ÆC
UV-A Detector
Spectral Response 320-400nm
Operating Temperature -10¡ÆC to +60 |
Part Number |
Description |
Units |
M007-110 |
SUNBURNING UV METER |
EACH |
| |
|
|
| |
|
