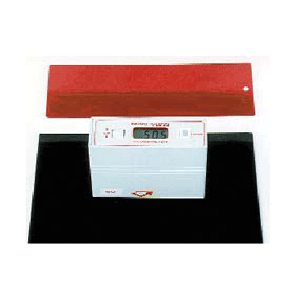

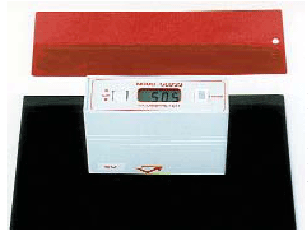

60 DEGREE GLOSSMETER
Ideal for UV printing and coating operations, this
single angle instrument measures gloss at 60 degrees. It uses beam coincidence
to ensure measurements are taken at the same surface point. It is powered
by an internal rechargeable battery or with the AC adaptor provided. It
meets international specifications for the measurements of gloss on paints,
inks, paper, plastics, card and metals. With accuracy comparable to laboratory
devices, readings are captured in 3 seconds to be displayed in increments
of 0.1 gloss units. Stabilization circuits and a second sensor ensure accuracy
when using different batteries or voltage, and for accommodating lamp aging.
|
The angle quoted is that between the light
source and 0 degrees which is the same asthat between 0 degrees and the
receptor. 0 is 90 degrees to the surface. Complete with rechargeable battery
pack, recharger, certified calibration standard, spare lamp, cleaning kit,
and carrying case.
Part Number |
Description |
Units |
N011-001 |
60 DEGREE GLOSSMETER |
EACH |
|
| |
|
|
| |
|
