Measure viscosity in 60 seconds or less using these Viscosity Cups.

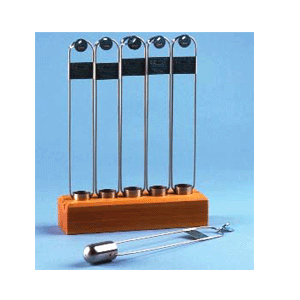

VISCOSITY CUPS

Measure viscosity in 60 seconds or less using these Viscosity Cups. By testing and recording the time needed to drain a specific liquid from a designated cup, accurate viscosity values can be determined. Use the included 8-1/2" x 11" viscosity conversion chart to convert drain time in seconds, (to the nearest tenth of a
second) into centistokes. Calibration and certification procedures qualify under MIL STD 45662A.

The physical dimensions of the Viscosity Cups comply to those listed and published in ASTM Method D- 4212. Manufacturing jigs and fixtures have been produced and are used to insure that
these dimensions are held to close tolerance. There are 5 cups in the series covering the seconds and centistoke range as follows:

CHOOSE FROM:
● Cup Number 1: Used for very thin mixtures where low solids application is desired.
● Cup Number 2: The most popular cup of the series. It is used for most mixed paints which have been reduced with solvent for application regardless of the application method.
● Cups Number 3 & 4: Used for higher solids application where extra heavy coatings are specified.
● Cup Number 5: Normally used for measuring the viscosity of paints prior to reduction with solvent.

Part Number	Description	Units
N002-001	CUP NUMBER 1 40-60 Seconds/10-36 Centistokes	EACH
N002-002	CUP NUMBER 2 20-60 Seconds/19-156 Centistokes	EACH
N002-003	CUP NUMBER 3 12-60 Seconds/64-596 Centistokes	EACH
N002-004	CUP NUMBER 4 10-60 Seconds/79-784 Centistokes	EACH
N002-005	CUP NUMBER 5 10-60 Seconds/161-1401Centistokes	EACH
