| Low pressure UV Penlamps are cold cathode, mercury, gaseous discharge lamps constructed of double bore quartz. |
 |

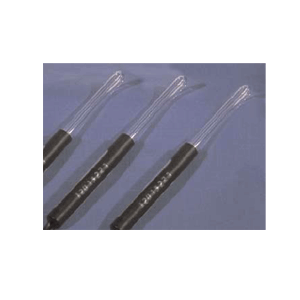

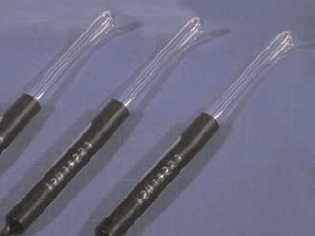

PENLAMPS
Low pressure UV Penlamps are cold cathode, mercury, gaseous discharge lamps
constructed of double bore quartz. Specially designed with electrodes at
one end for
insertion into small apertures. UV Penlamps are known for their long life
(5000 hours), stability throughout the lamp life and high degree of isolated
spectral line accuracy. They can be used as primary references or spectral
sources. The range of applications include monochromatic sources for optical
systems and reference studies. Other applications include chromotography,
interferometry and atomic absorption techniques. |
| Part Number |
Description |
|
| A129-001 |
UV PENLAMP 254nm/ 2-1/8"
Lighted Length: 2-1/8" (5.38 cm)
Total Length: 4-5/8" (11.75 cm) |
Tube O.D.: 1/4" (.64 cm)
Plastic Handle O.D.: 3/8" (.95 cm) |
| A129-004 |
UV PENLAMP 254nm/ 1"
Lighted Length: 1" (2.54 cm)
Total Length: 2-3/8" (6.03 cm) |
Tube O.D.: 5/32" (.40 cm)
Plastic Handle O.D.: 1/4" (.64 cm) |
| A129-003 |
UV PENLAMP 254nm/ 3/4"
Lighted Length: 3/4" (1.91 cm)
Total Length: 3-1/4" (8.26 cm) |
Tube O.D.: 1/4" (.64 cm)
Plastic Handle O.D.: 3/8" (.95 cm) |
| A129-002 |
UV PENLAMP 365nm/ 2-1/4"
Lighted Length: 2-1/4" (5.72 cm)
Total Length: 4-3/4" (12.07 cm) |
Tube O.D.: 3/8" (.95 cm)
Plastic Handle O.D.: 3/8" (.95 cm) |
| A129-005 |
UV PENLAMP 365nm/ 1-1/8"
Lighted Length: 1-1/8" (2.86 cm)
Total Length: 2-5/8" (6.03 cm) |
Tube O.D.: 1/4" (.64 cm)
Plastic Handle O.D.: 1/4" (.64 cm) |
| |
|
|
 | |
 |
|
 |
|
