AIR KNIVES

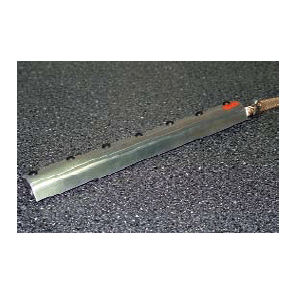

The CON-TROL-CURE® Air Knife is a quiet, energy-efficient way to cool substrates
as they exit the cure chamber. Utilizing the coanda effect to create high
velocity air motion, the Air Knife requires only minimal compressed air
as its power source.
As compressed air flows through the inlet and into a plenum chamber, it
is throttled through a thin nozzle extending the length of the Air Knife.
This primary air stream adheres to the coanda profile which turns it 90°,
and directs it to flow down the face of the knife. The primary stream immediately
begins to entrain surrounding air, while velocity loss is minimized through
the wall attachment effect. |
Interaction of the ejected and entrained air
dampens "air shear", reducing noise levels dramatically. The result
is a high velocity, high volume sheet of air achieved at minimum noise level.
Entrained air to compressed air ratios of 30:1 are achieved with this unique
knife. Compared to a 3:1 ratio for drilled or slotted pipe, you can achieve
an air savings of 40 to 90%! Available in lengths of: 6", 12",
18", 24", 30", and 36".
| Part Number |
Description |
Units |
| A005-009 |
AIR KNIFE 6” |
EACH |
| A005-010 |
AIR KNIFE 12” |
EACH |
| A005-011 |
AIR KNIFE 18” |
EACH |
| A005-012 |
AIR KNIFE 24” |
EACH |
| A005-013 |
AIR KNIFE 30” |
EACH |
| A005-014 |
AIR KNIFE 36” |
EACH |
|
| |
|
|
 | |
 |
|
 |
|
