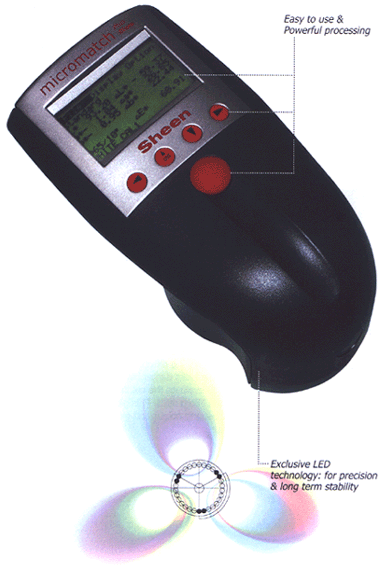

Micromatch  |
This protable spectrocolorimeter combines the latest and most advanced technology in micro-electronics and colorimetry.
While providing high precision
measurement, it offers excellent versatility
in all circumstances, from laboratory
analysis to on-site quality control.
The built-in powerful data processing, ease
of use and compact design bring maximum reliability to your daily oeprations.
Features
● Unrivalled LED illuminating system:
- Excellent short & long term stability
- Long calibration intervals (3 months)
- No temperature sensitivity
- Simple maintenance
● Available geometries: 45/0˚, d/8˚ SPIN, d/8˚ SPIN+Gloss
● Open or glass sealed apertures available in **20, 11 or 4mm
● Light weight: 500 gr.

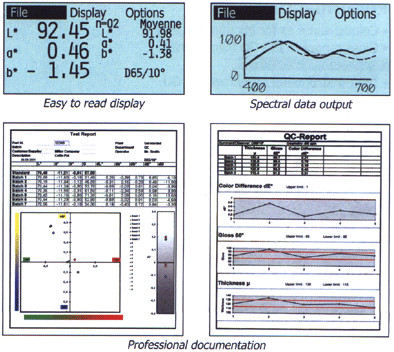

● Large display 60 × 30 mm: all colour data & spectral curves, auto switch-off
● Energy effciency: up to 10,000 measurements / battery set
● Output to printer or PC
● Guarantee: 10 years on diodes, 3 years on the instrument.
Performance
● Spectral range: 400-700 mm, 20 nm interval
● Precision/Repeatability: 0.01 ΔE*, 1σ (10 measurements on white tile)
● Inter-instruments agreement: 0.2 ΔE*, 1σ (on 12 BCRA tiles)
● Colorimetric systems: R×RyRz, XYZ, Yxy, CIELab/Ch, Lab(h),
● Differences: ΔE*, ΔE(h), ΔECMC, ΔEFMC2, ΔE94 , ΔE99, ΔE2000, and ΔL*a*b*, ΔL*C*h* and Δ of other components
● Indices: -YIE313, YID1925, WIE313, CIE, Berger
- Opacity, Metamerism
- Colour strength
● 13 illuminants: A, C, D50, D55, D65, D75, F2, F6, F7, F8, F10, F11, UL30
● Observer: 2˚ or 10˚
● Memory: 200 standards, 999 samples
● Automatic functions: colour search, store, average
● Pass/Fail function, with adjustable tolerances
● Programmable user interface: limited functions, or full capability
● Standard package: Micromatch, calibration standards: White (certified-NPL traceable) and Black, Green control tile, area locator, instructions manual, Easy-link software, interface cable, 4 ×AA batteries, wrist strap, colour theory reminder, carrying case.
Software
● Easy-link software included to download colour data, differences, spectral data to Windows Excel, and upload standard values from PC. Easy to read documentation with prepared templates.
● Upon request: colour matching software.
Optional accessories
● Special Sample Holder: small or curved parts such as pens, handles, etc. can be held firmly in place with this device, thus allowing high measurement repeatability.
Suitable for Micromatch Plus 45/0˚ - **4 mm or 11 mm, and Micromatch Plus d/8˚ **11mm.
Supplied with 3 jigs: foam disk, V-shaped groove disc, plain disc to be customised by user.
● USB adaptor, driver included
● Portable serial printer
● Serial/parallel converter (for parallel printer)
 |
| STANDARDS |
| ASTM |
:D1925, 2244,E308, E313,1164 |
| DIN |
5033, 5036, 6174 |
| ISO |
7724 | | |
Ordering references
| MICROMATCH PLUS - OPEN APERTURE |
| Cat N˚ |
Geometry |
Measuring area, ** (mm) |
| 181/1 |
45/0˚ |
20 |
| 181/2 |
11 |
| 181/3 |
4 |
| 182 |
d/8˚ - SPIN |
11 |
| MICROMATCH PLUS - GLASS SEALED APERTURE |
| Cat N˚ |
Geometry |
Measuring area, ** (mm) |
| 185 |
45/0˚ |
20 |
| 186 |
11 |
| 187 |
d/8˚ - SPIN |
11 |
| OPTIONAL ACCESSORIES |
| BG6825 |
Special Sample Holder **4 mm |
| BG6845 |
Special Sample Holder ** 11 mm |
| BG4401 |
USB adapter |
| BG6650 |
Portable serial printer 230V |
| BG6649 |
Portable serial printer 115V |
| BG6651 |
Serial / parallel converter |
| 190 |
Matchmaster, colour matching software | |
