| This bench-top 45/0˚ spectrophotometer is a reference laboratory instrument |
 |
COLOR-VIEW |

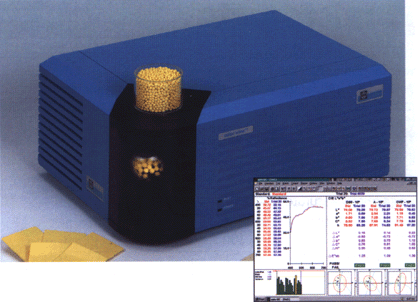

This bench-top 45/0˚ spectrophotometer is a reference laboratory instrument, suitable for rough or directional materials, powders or pellets etc. Its robust design allows for trouble free intensive operation.
Optional built-in 60˚ gloss meter, additional aperture size adapters and measurement with a glass cup enhance is versatility.
Features
● Excellent repeatability due to patented self calibration
● Cooled measurement port allows rapid measurement with no thermochromic effects
● Built-in retro-viewer, aperture ** 32 mm
● White (certified) and black calibration standards + green control tile
● Auto-QC software included (see Color-sphere)
● Optional built-in 60˚ glossmeter, including calibration standard
Performance
● Geometry: 45/0˚ circumferential,
● Halogen lamp, user replaceable
● Spectral range 380-720 nm, 10 nm interval
● Repeatability: 0.01 ΔE*, 1σ, 300 measurements on white tile
● Operating environment: 10℃-40℃, <85% rH, non condensing.
| STANDARDS |
| Same as for Micromatch Plus | | |
Ordering references
| COLOR-VIEW |
| BG6501 |
Color-View 230V (115V on request) |
| BG6502 |
Color-View with 60˚ gloss 230V (115V on request) |
| OPTIONAL ACCESSORIES |
| BG6521 |
** 11 mm aperture kit (plate+optical adapter) |
| BG6520 |
** 4 mm aperture |
| BG6135 |
Calibration glass plate (when using glass cup) |
| BG6136 |
Glass cup ** 60 mm |
| BG6245 |
Cover for glass cup |
| BG6524 |
Tungsten halogen lamp | | | |
|
|
 | |
 |
|
 |
|
