Features

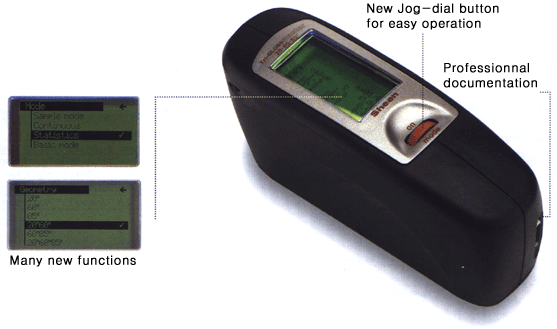

● Menu guided operation, activated by the jog-dial button
● Reading: 20˚-60˚+85˚ separately, or simultaneously 20+60˚, 60+85˚, 20+60+85˚
● Difference & Pass-Fail reading (memory for 50 references)
● Continuous reading with actual value, average, min., max.
● Statistics:
- adjustable number of readings/sample, from 2 to 99
- selectable display with actual value, average, std. deviation, min., max., range, difference, pass/fail
● Memory: 999 readings, saved with individual name, date & time and recall function
● Automatic calibration check

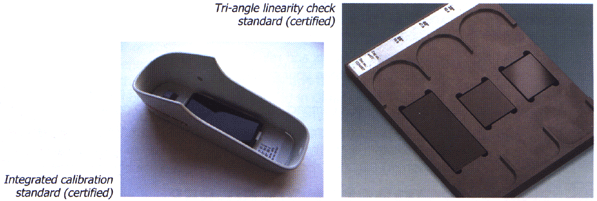

● Protective holder with integrated calibration standard (including traceable certificate)
● RS 232 output to PC, including Easy-link software
● Standard package: Instrument & calibration holder (certified), Easy-link software & PC cable, Manual, Battery, Case
Software (included)
● Easy-link, for data downloads to Excel, with standard templates for professional QC reports.
|
Performance
● Auto-range: 0-2000 GU (20˚)
0-1000 GU (60˚)
0-160 GU (85˚)
● Suitable for non-metal and metal surfaces
● Repeatability: 0.2 GU (0-99.9 GU) - 0.2% (100-2000 GU)
● Reproducibility: 0.5 GU (0-99.9 GU) - 0.5% (100-2000GU)
● Measuring time: 0.5 sec./each geometry
● Measuring area, mm: 10 × 10 (20˚), 9×15 (60˚), 5×38 (85˚)
● Language: English, Spanish, German, French, Italian, Japanese
● Auto shut-off: adjustable 10 to 99 sec.
● Power: 1 × 1.5V Mignon Alkaline battery for 10,000 readings, or external power supply.
Ordering references
| TRI-GLOSSMASTER |
| 260 |
Tri-Glossmaster 20-60-85˚ |
| OPTIONAL ACCESSORIES |
| BG4401 |
USB Adapter, including driver software |
| BG4403 |
External power supply, 90-264V, self adapting, European plug |
| BG4404 |
External power supply, 90-264V, self adapting, UK plug |
| BG4432 |
Linerity check standard Tri-angle (certified) |
| BG4433 |
Linerity check standard Tri-angle mirror (certified) | |
