HAZE-GARD |
 |

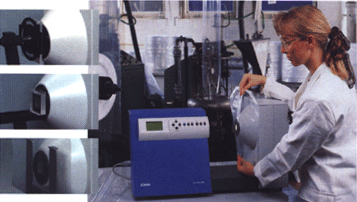

This instrument, equipped with an integrating sphere offers reliable and accurate measurement of Total Transmittance, Haze, and Clarity. A large variety of samples can be easily positioned onto the sample port, and measurements made independent from the ambient lighting conditions.
2 models available:
- Haze-Gard Plus illuminant C for general purposes
- Haze-Gard Plus illuminant A for automotive windshields
Features
● Reference beam, self-diagnosis, enclosed optics for long term accuracy
● Statistics: average, std. deviation, variance coefficient, min/max.
● Memory : 7 × 999 values
● Serial RS232, data output to printer or PC, via Easy-link software included
● Foot switch & automatic measurements for hand-free operation
● Standard package: Instrument, zero standard, Clarity standard, foot switch, Easy-link software, PC cable, operation manual.
Performance
● Geometry: 0˚/diffuse, sample port: ** 25.4 mm,
measurement area : ** 18 mm
● Illuminant CIE/C or A, spectral response: CIE f(Y)
● Range: 0-100%, repeatability: ± 0.1,
reproducibility: ± 0.4 unit.
| STANDARDS |
| ASTM : D 1003, 1044 | | |
Ordering references
| HAZE-GARD PLUS |
| BG4725 |
Haze-gard Plus Illuminant C |
| BG4726 |
Haze-gard Plus Illuminant A |
| OPTIONAL ACCESSORIES |
| BG4734 |
Clarity check standard, certified |
| BG4745 |
Haze certified standards,
set of 5: approx. 1-5-10-20-30% * |
| BG4754 |
Transmittance certified standards,
set of 4: approx. 30-50-70-90% * |
| BG4738 |
Film holder (size 17 × 10 cm, thickness <0.5 mm) |
| BG4735 |
Taber Abrasion holder |
| BG4739 |
Cuvette holder |
| BG6180...6183 |
Cuvette for liquid, path length 2.5/4.0/5.0/10.0mm |
| BG4731 |
Foot switch |
| BG6650 |
Portable printer 230V(115V upon request) | * Individual standards also available upon request |
