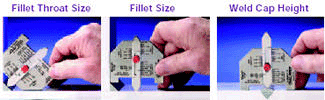

AWS Weld Gauge The AWS Weld Gauge is for accurate calibration of butt and fillet type welds. The redesigned gauge is pocket size and easy to operate. Weld convexity and concavity sizes have automatically been predetermined in accordance with AWS DI.I para 3.6.
