| The ForeEyes™ 2020 |
 |
Portable Video Inspection Recorder
 |

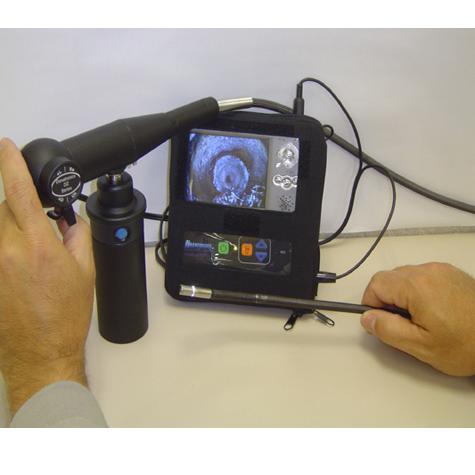

The ForeEyes™ 2020 combines a 3.5 inch (87.5 mm) TFT LCD with a 20 Gigabyte (also available up to 80 Gigabyte) hard drive to record, with narration, the equivalent to 40 full length movies. The ForeEyes 2020 is conveniently packaged in a collapsible chest harness with removable sunshade for easy, one-hand operation of our articulating waterproof ccd camera with variable LED light source for low lit areas of concern.
The ForeEyes 2020 weighs less than 2 lbs(.9 kg) and operates continuously for 4 hours. Once the videos are saved, simply plug in the included USB cable to save the fi les to the directory of your liking. You can even send them back to the ForeEyes 2020 to compare an inspection previously recorded.
The ForeEye can be used anywhere you cannot see with your eyes such as pipes, tanks, aircraft engines, boat hulls and propeller inspections, security applications such as under vehicles, behind dashes, trunks and containers as well as inside duct work (HVAC), chimneys and many more. |
- Complete, Affordable and Portable video inspection system
- Interfaces with SnakeEye™ camera and other borescopes for smaller diameter applications
- 4 hour battery life
|
 |
 |
- Weighs less than 2 lbs. (.9 kg)
- Sunlight readable, 3.5 inch color TFT
- Achieve all inspections with on-site narration
- Playback recorded video inspection for (in the field) comparison
|
|
| Display Unit |
- 5 in (87.5 mm) color TFT-LCD
- 320 x 240 color pixels, 22,000 color combinations
- Anti-glare screen
- Convenient hand strap
- Backlight brightness adjustment High/Low
- Adjustable Contrast, Color, Hue
- NTSC (60 Hz) or Pal (50 Hz)
- Chest Harness included with collapsible sunshade
- Camera probe light control On/Off, variable adjustment for SnakeEye camera
- External power port
- Video I/O port
|
| Camera |
- CCD camera
- 1.2 in (3.0 cm) diameter
- Removable
- Sensitivity 10 lux
- Resolution 512 x 492
- Field of view 46 degrees
- 4 white light LEDs
- Waterproof to 100 ft. (30m)
- Other smaller diameter cameras also available
|
| Power System |
Up to 4 hours continuous operation for both units
- Rechargeable Li-Ion for pocket recorder
- Rechargeable batteries for ForeEyes alkaline “AA”
- Battery fast charger
- AC adapter
- Low Battery display for pocket recorder and ForeEyes 2020
|
| Camera Adapters |
- Standard wand is 18 in (45.7 cm) length
- 90 degree one way articulation
- Sure-grip handle
- Quick release cable
|
| C-Mount Camera |
- Adapts SnakeEye to fiberscopes and borescopes for smaller diameter applications
|
| Attachments |
- 4 ft. (1.2 m) flexible cable
- Carrying case
- Video I/O cable
- Telescopic wands expandable to 15 feet
|
| General |
- Total system weight - less than 2 lbs. (.9 kg)
- Power requirements: AC Nominal input: 100-240 V, DC nominal input: 12V
- System operating temperature -32 degrees F to 122 degrees F, 0 degrees C to
50 degrees C
- Video input/output - NTSC, PAL
|
| ForeEyes Connectors |
- Video In/Out - NTSC or PAL
- CCD Camera Input, quick release
- Microphone connector
|
| General |
- Record up to 80 hours of Video Inspection to document all your critical video needs
- Ideal for monitoring fatigue cracks, corrosion or for insurance purposes. Files can be sent back to the ForeEyes 2020 for (in field comparisons).
- Record up to 4 hours of inspections time
- Store the equivalent of up 40 full-length movies with narration
- Enjoy up to 3 hours of video playback on the color LCD while on the go
- Use as stand alone pocket video recorder for:
- Download / transfer / record up to 300 hours of music
- Store and view up to 200,000 JPEG photos
- Play MP3, WMA (including protected files) and WAV music files
- Listen to and record off the radio (with optional FM Radio & Remote Control)
- Download and store files form a PC
- Can be used with DZ Series Borescope
|
 |
| Item Number |
Item |
| MA-601010 |
ForeEyes 2020 w/20 GB memory, color 3.5” TFT LCD with model 2020 interface unit including: CCD Camera and Articulating Wand, interface cable, 2 “AA” batteries, Carrying pouch with chest harness straps, USB cable, instruction manual, Charger for pocket recorder, Charger adapter for ForeEyes 2020, Plastic Carrying case. |
| MA-601013 |
Same as above; ForeEyes 2020 with 80GB memory. |
| MA-601020 |
ForeEyes 2020 Hand-Held Digital Pocket Video Recorder w/20 GB memory, color 3.5” TFT LCD with model 2020 interface unit including: CCD Camera (SDA-02), eyepiece adapter, and Articulating Wand, Universal C-Mount adapter to interface ForeEyes 2020 with other borescopes, interface cable, 2 “AA” batteries, Carrying pouch with chest harness straps , USB cable, Instruction manual, Charger for pocket recorder, Charger adapter for ForeEyes, and Plastic Carrying case. |
| (See Boroscopes BELOW) |
|
|
| Item Number |
Item |
| MA-601031 |
Interface cable & adapter to interface 2020 with pocket video recorder. |
| MA-601051 |
Carrying Pouch/Chest Har |
| MA-601071 |
3 foot USB cable. |
| MA-601091 |
Charger Adapter, 100-240 VAC for Pocket Video Recorder. |
| MA-601111 |
Plastic Carrying Case (Not suitable as a shipping container). |
| MA-601131 |
Instruction Manual for Pocket Video Recorder |
| MA-601151 |
Instruction Manual for Model 2020. |
| MA-601171 |
Eyepiece adapter, 25MM to interface C-Mount to other borescopes. |
| For small diameter applications use the DZ Series Borescopes with the FourEyes Video Recorder (see below). |
|
 |
 |
|
| Item Number |
Item |
| |
6 MM Videoscope DZ series |
| MA-601402 |
1.5 M length, 4-way articulation |
| MA-601403 |
2.0 M length, 4-way articulation |
| MA-601404 |
3.0 M length, 4-way articulation |
| MA-601405 |
6.0 M length, 4-way articulation |
| |
6 MM Long Videoscope DZ series |
| MA-601406 |
6.0 M length, no articulation |
| MA-601407 |
8.0 M length, no articulation |
| MA-601408 |
12.0 M length, no articulation |
| MA-601409 |
15.0 M length, no articulation |
| |
8 MM Videoscope DZ series |
| MA-601410 |
1.0 M length, 2-way articulation |
| MA-601411 |
1.5 M length, 4-way articulation |
| MA-601412 |
2.0 M length, 4-way articulation |
| MA-601413 |
3.0 M length, 4-way articulation |
| MA-601414 |
5.0 M length, 4-way articulation |
| MA-601415 |
6.0 M length, 4-way articulation |
| |
8 MM Long Videoscope DZ series |
| MA-601416 |
6.0 M length, no articulation |
| MA-601417 |
8.0 M length, no articulation |
| MA-601418 |
12.0 M length, no articulation |
| MA-601419 |
15.0 M length, no articulation |
| Required Accessories |
| MA-601465 |
Halide Light Source |
| MA-601469 |
AC Power Supply for DZ Series Borescope | | |
|
|
 | |
 |
|
 |
|
