Rutland Furlmatic 1803 Windcharger

Create your own stand-alone power system without costly grid installation or on-going costs

Do you need electrical power at a remote site but the cost of grid installation and on going bills is putting you off?

Ever wondered if you can harness the wind blowing around you into some useful power?

Marlec's FM1803-2 Furlmatic Windcharger makes powering at remote sites possible and at an affordable cost too.   This 1.8M diameter turbine, designed for use on land is very powerful for its size and with a proven track record behind it you can rely on it too, it's built to last.

• Do you want the satisfaction of generating your own electricity and reducing your dependence on grid supplies?
• Do you need a source of power that can withstand harsh weather - from winter storms to scorching hot desert conditions?
• Are you concerned that alternative sources of energy, such as wind power, may not work near your location… or provide enough power?
• Do you think wind power is unpredictable or expensive to set up and maintain?

At Marlec you will receive sound advice, our reputation depends on it, so tell us about your location and we will give you our best recommendation for a renewable energy system that will deliver power for you.

• Imagine having a steady source of electrical power no matter how far away you are from grid power
• Imagine the satisfaction of seeing your own wind turbine generator and no on-going electricity bills!
• Imagine having a system that works reliably, day in and day out, year round
• Commercial users - think how effective it would be to have a power solution that doesn't require expensive grid installation or ongoing costs - could that open up the scope of installation of your own products?

The FM1803-2 Furlmatic Windcharger is a powerful battery charging turbine that is perfect for off-grid homes, farm buildings, telemetry stations, telecom sites, radio/TV transmitter stations, security camera systems, rural clinics, expeditions, military field applications, poultry sheds and many more situations where power is needed at isolated places.

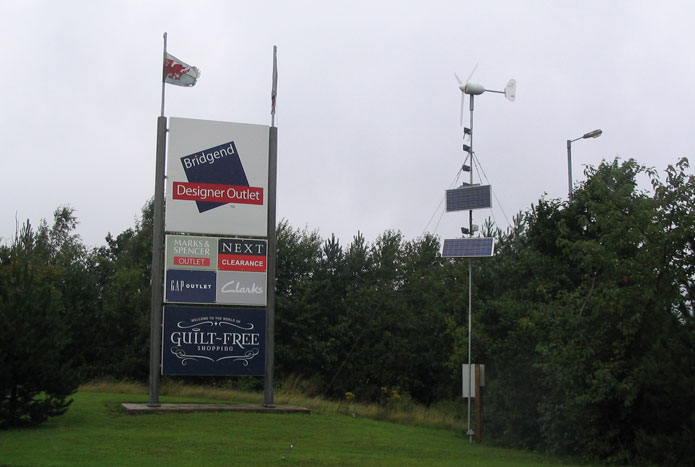

The FM1803-2 Furlmatic can be used "stand-alone" or in conjunction with solar panels and/or a diesel generator to create your own complete power system.  You can use the power at low voltage, 12V or 24V, or connect an inverter to the battery bank to deliver 230V grid type power enabling you to run many typical household appliances.   The possibilities are endless, even if you have grid power an FM1803-2 can reduce your dependence on the grid and unlike grid-connect wind turbines this system ensures that if there's a power cut you will still have independent  power for some essentials.

Marlec has a policy and culture of continuous improvement and so the current model is the 3rd generation of our 1.8m diameter turbine since it's launch in 1988.  Improvements adopted over the lifetime have been:

• power production at 10m/s (22mph) increase from 250W to 340W, that's nearly a 40% power increase
• Shape and styling have developed at each generation, the latest 3 bladed design is super smooth
• Aerofoil blades have adapted and improved as new lightweight materials and processes have become available
• The improved electronic controller has increased the power efficiences extracted from the turbine

All our products are built and tested to the highest standards and our committment to this was demonstrated when we became the first small wind turbine manufacturer in the world to achieve ISO 9001 status over 10 years ago.

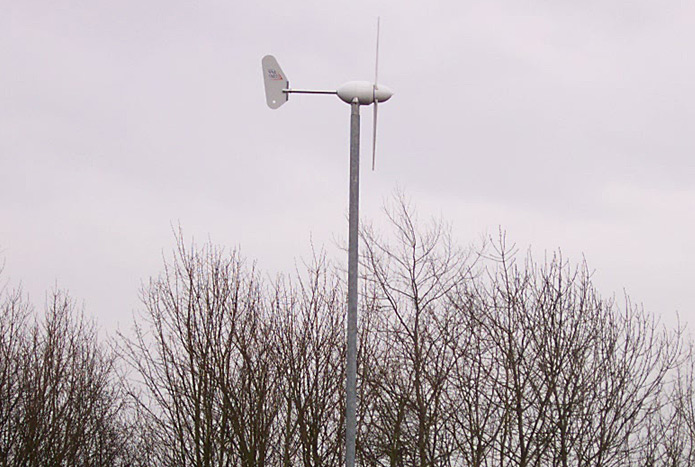

Gallery - Click image to see more details

Features

• AC Power Transmission Feature
  • High power 3 phase AC (alternating current) is transmitted from the wind turbine to the controller and battery bank
  • This allows the wind turbine to be located at an optimal site or position to capture the wind whilst not compromising on  power transmission losses over long distances
  • This further minimises the cost of transmission cables which would be more costly if DC power were transmitted over a great distance

• Our own unique and purpose designed Rutland low friction, flywheel type generator is incorporated into the FM1803-2 design
  • This keeps the turbine spinning when other wind generators stall between gusts of wind
  • Overall this delivers more Ampere hours of power per day especially in low to average windspeeds
  • The alternator’s windings and magnets are encapsulated in glass fibre so are sealed from the elements and the harshest weather conditions

• Charges at wind speeds as low as 3m/s (6-7mph) - just a gentle breeze
  • This means more time is spent generating power giving you a faster return on your investment

• Generates 36 Watts @ 5m/s (11mph) 414 Watts @ 11m/s and up to 750 Watts peak

• Automatic "furling" tail system
  • Activates at 15m/s (33 mph/53 kph) to automatically slow and protect the turbine in high winds
  • Moves the turbine 90 degrees laterally to the prevailing wind, allowing the turbine to slow down, while continuing to produce power
  • Reduces stress on the wind generator and tower in high winds

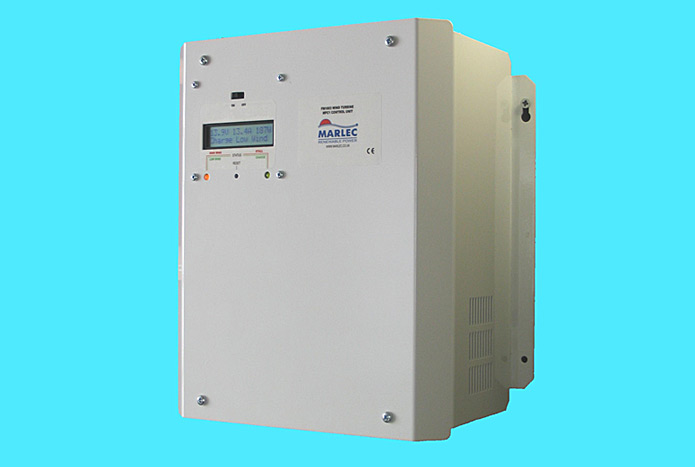

• Electronic MPC1 Controller is included with the turbine.  It's key features and functions are:
  • It optimises turbine power output by matching power ratios with windspeed
  • It converts the turbine's AC power to DC, so you can locate the turbine where windflow is best – yet use the power a distance away
  • MPC1 Controller provides overcharge protection which shuts down the turbine when the batteries are full saving on unnecessary wear
  • It has a digital display of battery volts, power output and modes of operation
  • and is available in 12 volt or 24 volt versions

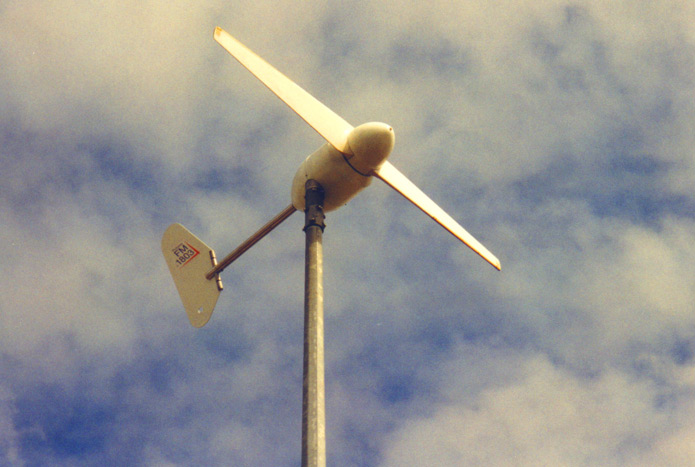

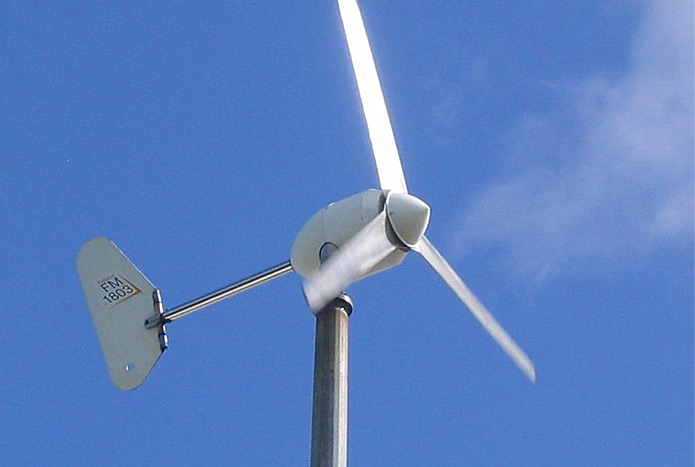

• 1.8m diameter turbine of 3 glass re-inforced aerofoil blades
  • Finely balanced, aerodynamic aerofoil blades are injection moulded.  This makes them lightweight, durable and very smooth running.
  • Our 3 blade design turbine is very quiet in operation, you will hear only a soft swishing sound when it's windy.
  • Our turbine blades are very efficient at converting the wind into power you can use.

• Designed to mount on an 81mm internal diameter tube.  Outside diameter 91mm for top 20cm section which may then increase to a suitable larger diameter depending on the tower height and design.

• Built in slip ring and low-wear brushes
  • Gives the unit complete 360º free rotation on the mounting pole whilst avoiding twisted cables
  • Brushless alternator requires no maintenance
  • Sealed-for-life bearings for a long service life

• No radiated interference - complies fully with EEC Directive BS EN 89/336/EEC

It's a convenient, reliable and cost effective solution to your off grid power needs and with our proven track record in a variety of applications from the cold harsh environment of Antarctica to the Sahara Desert you can be sure the FM1803-2 is built to withstand gale force winds !    Join tens of thousands of satisfied Marlec product users worldwide!
