Features |
- Dual Channels scan and display T1, T2, or the difference between T1 and T2
- Simultaneous printing of T1, T2 and T1-T2 readings
- Record Max/Min/Avg readings for later recall
- Hi/Lo alarm settings
- Go/No Go digital signal output alarm jack for control and industrial automation
- Large 19,999 count LCD display with real time clock and calendar
- Tripod mount for stationary use
- Built-in thermal printer allows user to program time interval between printouts
- Complete with carrying case, six 1.5V AAA batteries, 2 rolls thermal paper and Go/No Go Mini DIN cable.
|
| | | SPECIFICATIONS
| |
Range |
Resolution |
Basic Accuracy |
| K |
-328 to 32°F |
-200 to 0°C |
±(0.05% + 1.4°F or 0.7°C) |
| 32 to 1800°F |
0 to 981°C |
±(0.01% + 0.9°F or 0.5°C) |
| 1800 to 2431°F |
982 to 1333°C |
±(0.05% + 0.9°F or 0.5°C) |
| J |
-328 to 32°F |
-200 to 0°C |
±(0.05% + 1.4°F or 0.7°C) |
| 32 to 1400°F |
0 to 760°C |
±(0.01% + 0.9°F or 0.5°C) |
| E |
-328 to 32°F |
-200 to 0°C |
±(0.05% + 1.4°F or 0.7°C) |
| 32 to 1297°F |
0 to 703°C |
±(0.01% + 0.9°F or 0.5°C) |
| T |
-328 to 32°F |
-200 to 0°C |
±(0.05% + 1.4°F or 0.7°C) |
| 32 to 752°F |
0 to 400°C |
±(0.01% + 0.9°F or 0.5°C) |
| Resolution |
0.1°F/°C |
| Sampling Rate |
2 times/sec |
| Printing Interval |
Programmable from 5 sec. to 23 hours 59 min. 59 sec. |
| Battery Life |
70 hours (not including printer) |
| Dimensions |
7.6x3x1.5" (193x74x37mm) |
| Weight |
12.9oz (365g including batteries) |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| EH422314 |
|
422324 |
|

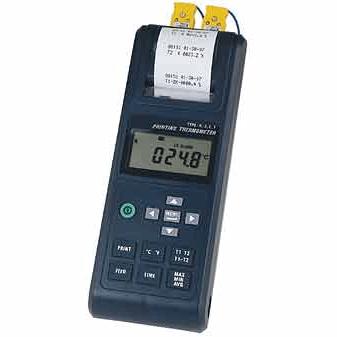

TYPE K, J, E, T PRINTING THERMOMETER |
|
Yes |
|
1,007,964 |
| EH422377 |
|
422377 |
|
OPTIONAL THERMAL PAPER ROLL, 2 PK, 1.5"(38mm) WIDTH FOR Type K, J, E, T Printing Thermometer |
|
Yes |
|
14,688
|
| EH149114 |
|
149114 |
|
OPTIONAL 117VAC ADAPTER FOR 422314/315 FOR Type K, J, E, T Printing Thermometer |
|
Yes |
|
64,260
|
| EH149220 |
|
149220 |
|
OPTIONAL 220VAC ADAPTOR FOR EH422314 PRNT THERMO FOR Type K, J, E, T Printing Thermometer |
|
Yes |
|
64,260
|
| EH11926 |
|
872501 |
|
OPTIONAL TYPE K BEAD WIRE PROBE FOR Type K, J, E, T Printing Thermometer |
|
Yes |
|
34,884
|
| EH119212 |
|
871515 |
|
OPTIONAL TYPE K S.S.GENERAL PURPOSE TEMPERATURE PROBE FOR Type K, J, E, T Printing Thermometer |
|
Yes |
|
73,440
|
| EH872502 |
|
872502 |
|
OPTIONAL TYPE J BEAD WIRE PROBE FOR Type K, J, E, T Printing Thermometer |
|
Yes |
|
45,900
|
| EH801515 |
|
801515 |
|
OPTIONAL TYPE J S.S. GENERAL PURPOSE TEMPERATURE PROBE FOR Type K, J, E, T Printing Thermometer |
|
Yes |
|
73,440
| | |
|
|
 | |
 |
|
 |
|
