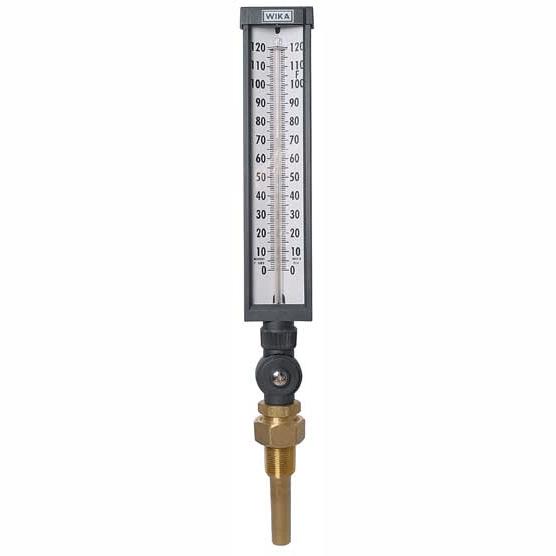

| Glass Thermometer, Range: 0 / 120 °F, Stem Length: 3 1/2" WIKA industrial glass thermometers |
| WIKA industrial glass thermometers offer quick, easy-to-read temperature measurement for tough applications. Glass/mineral reinforced GE Valox ® housings and spring-mounted windows contribute to impact, shock and vibration resistance. WIKA industrial glass thermometers are the ideal choice for process piping, HVAC/R applications, diesel engines and compressors.
The Just-Rite model, available with 7" and 9" scales, has a fully adjustable connection for easy reading at any angle. WIKA 6" industrial glass thermometers are manufactured in straight and back connected configurations, and come with a standard dual threaded brass socket with both 1/2" and 3/4" NPT connections.
9 Inch Scale, 1 1/4" - 18" Swivel Nut Connection |
| |
|
Features |
- Case: V-shaped case parts are molded of rugged GE Valox ® 735 polyester, finished in textured black. Heavy glass window is spring-mounted to prevent rattles
- Stem: To ensure sensitivity, bulb chambers are precision ground aluminum, tapered for a close-tolerance metal-to-metal contact with matching tapered socket. Graphite is used as a conductor between bulb chamber and glass tube
- Locking Device: Independent adjustable case locknut and angle adjusting screw provide 360° positioning of case and stem
- Adjustable Joint: Matching GE Valox ® joint completely encloses capillary for thermal system protection
- Tube and Capillary: Mercury-filled (Spirit Fill available), “Red-Reading” magnifying lens tube is silicone shock-mounted to increase service life. Guaranteed accurate to within 1% of scale range
- Scale: Permanently baked-on, bold black graduations are printed on white-coated aluminum. No mounting screws obscure scale. Scale adjusts through locking device at top of instrument
|
| | |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| WK9010300004WI |
|
|
|
Glass Thermometer, Range: 0 / 120 °F, Stem Length: 3 1/2" |
|
Yes |
|
108,324 |
| WK9010300007WI |
|
|
|
Glass Thermometer, Range: 30 / 240 °F, Stem Length: 3 1/2" |
|
Yes |
|
108,324 |
| WK9010300204WI |
|
|
|
Glass Thermometer, Range: 0 / 120 °F, Stem Length: 3 1/2" |
|
Yes |
|
108,324 |
| WK9010300205WI |
|
|
|
Glass Thermometer, Range: 0 / 160 °F, Stem Length: 3 1/2" |
|
Yes |
|
108,324 |
| WK9010300206WI |
|
|
|
Glass Thermometer, Range: 30 / 180 °F, Stem Length: 3 1/2" |
|
Yes |
|
108,324 |
| WK9010300207WI |
|
|
|
Glass Thermometer, Range: 30 / 240 °F, Stem Length: 3 1/2" |
|
Yes |
|
108,324 |
| WK9010600204WI |
|
|
|
Glass Thermometer, Range: 0 / 120 °F, Stem Length: 6" |
|
Yes |
|
156,060 |
| WK9010600208WI |
|
|
|
Glass Thermometer, Range: 30 / 300 °F, Stem Length: 6" |
|
Yes |
|
156,060 |
| WK9010900204WI |
|
|
|
Glass Thermometer, Range: 0 / 120 °F, Stem Length: 9" |
|
Yes |
|
229,500 |
| WK9010900208WI |
|
|
|
Glass Thermometer, Range: 30 / 300 °F, Stem Length: 9" |
|
Yes |
|
229,500 |
| WK9011200204WI |
|
|
|
Glass Thermometer, Range: 0 / 120 °F, Stem Length: 12" |
|
Yes |
|
257,040 |
| WK9011200208WI |
|
|
|
Glass Thermometer, Range: 30 / 300 °F, Stem Length: 12" |
|
Yes |
|
257,040 | | |
|
|
 | |
 |
|
 |
|
