| Type |
6224 |
6226 |
Applicable standards
Measurement Range
|
Integrating-averaging
Precision sound level meter
JIS C 1505, IEC 60651 Type1,
IEC 60804 Type1, IEC/CDV 61672-1 Class1
27~130dB (A)
38~130dB (C)
41~130dB (F) |
Integrating-averaging
sound level meter
JIS C 1502, IEC 60651 Type2,
IEC 60804 Type2, IEC/CDV 61672-1Calss2
28~130dB (A)
33~130dB (C)
38~130dB (F) |
|
|
50~140dB (A)
55~140dB (C)
60~140dB (F) |
Measurement Frequency Range
Microphone |
20Hz~20kHz (JIS range:20Hz~12.5kHz)
7146N
1/2 Electret condenser microphone |
20Hz~8kHz
7052N
1/2 Electret condenser microphone |
Level Range Control
Linearity Range |
10dB 6steps
100dB |
| Response |
Fast, Slow, Impulse |
Fast, Slow |
| Frequency Weighting |
A, C, Flat |
| Measurement Parameters |
| Lp |
: Sound pressure level |
| Leq |
: Equivalent continuous A-weighted sound pressure level |
| Le |
: Sound exposure level |
| Lmax |
: Maximum sound level |
| Lmin |
: Minimum sound level |
| Lx |
: Percentile level (5values of free select) |
| Lpeak |
: Waveform peak hold (C weighting selectable) | |
Response Time For Constant
Input Signal |
1s,3s,5s,10s,1min,5min,10min,15min,30min,1h,8h,24h, Manual
(Max. 199H59M59S) |
| Sampling Time |
20.8 ¥ì s(Leq), 10ms(Lmax,Lmin) |
| Lx Sampling Time |
100ms |
| Display |
|
| |
Type
Digital display
Bar display
Warning
Battery | |
Liquid crystal and Back light (128×64 points)
4 digits, Display Period : 1s
Display Period : 0.1s
Over : +10dB from upper limited scale Under : -0.6dB from lower limited scale
4steps display |
| Memory |
Memorize the Sound pressure level or the Operation level (Approx. 15000 data) |
| Data |
Built-in (year/month/day/hour : minute : second) |
| Pause |
pause/data clear |
| Calibration |
Electric calibration with internal oscillator ( 1kHz Sine wave ) |
| AC Output |
1Vrms for full scale Output impedance:600Ω, resistance:more than 10kΩ |
| DC Output |
2.5V for full scale, 0.25V/10dB Output impedance:50Ω, resistance:more than 10kΩ |
| I/O Terminal |
Interface:RS-232C Data:8bits, Stop:2bits, Parity:not,Baud rate:4800,9600,19200,bps
(direct output to printer, control and output data to computer |
|
|
Four 1.5V Alkaline cells IEC type LR6, Optional AC adapter
Alkaline dry cell : Approx.24hours (Manganese dry cell : Approx.11hours)
when Switch on a back light:Approx.1/3 |
| Operating Temperature range |
Temperature : -10℃~50℃ Humidity : 30%~90% (not condensing) |
| Dimensions |
85 (W) × 310 (H) × 48 (D) |
85 (W) × 284 (H) × 48 (D) |
| Weight |
Approx.370g |
|

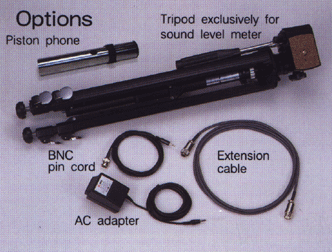

| OPTIONAL ACCESSORIES |
용도 |
| AC-1026 |
AC 아답터 |
| NA-0333 |
소음계전용삼각대 |
| BC-0046-2 |
연장 케이블 2m |
| BC-0046-5 |
연장 케이블 5m |
| BC-004610 |
연장 케이블 10m |
| BC-0071 |
BNC 핀코드 |
| 2124A |
피스톤폰 |
| 2126 |
음파레벨교정기 |
| BC-0026 |
커넥터 |
| BC-0026-4 |
데이터 관리소프트웨어 |
| BS-80TSL |
전용프린터 RS-232 케이블 |
| A12-25F-9F |
변형커넥터 |
| AC-1016 |
프린터용 AC 아답터 |
| KDA-60 |
변형 아답터(220~100V 변형) |
| BS-80-15 |
프린터 전용지(Pack of 10) | |

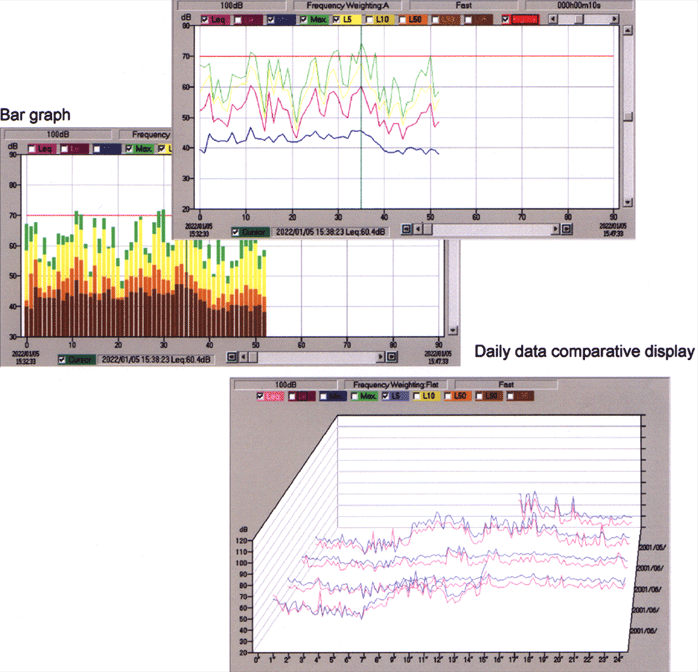

| Sound-level meter / Data management software |
| NA-0226-4 |
In addition, you can print out the following style list on A4 size paper.
ACO sound level meter / Data management software
100dB Frequency Weighting characteristic : Frequency Weighting: A Time weighting : Fast
| No. |
Meas. time |
Leq |
Le |
Min. |
Max. |
L05 |
L10 |
L50 |
L90 |
L95 |
| 1 |
2001/05/31 14:54:30 |
062.6 |
090.3 |
032.7 |
080.0 |
068.8 |
066.6 |
054.7 |
038.9 |
037.1 |
| 2 |
2001/05/31 15:04:29 |
062.7 |
090.4 |
034.0 |
082.1 |
068.6 |
066.1 |
056.0 |
039.5 |
037.3 |
| 3 |
2001/05/31 15:14:29 |
049.1 |
077.0 |
033.3 |
071.1 |
054.2 |
050.5 |
039.2 |
034.8 |
034.4 |
| 4 |
2001/05/31 15:24:29 |
044.5 |
072.4 |
032.8 |
064.8 |
051.0 |
048.1 |
037.1 |
034.2 |
033.8 |
| 5 |
2001/05/31 15:34:29 |
060.5 |
088.3 |
033.9 |
079.8 |
067.6 |
064.2 |
044.6 |
035.9 |
035.5 |
| 6 |
2001/05/31 15:44:29 |
063.6 |
091.4 |
034.1 |
086.6 |
069.2 |
059.1 |
045.2 |
036.0 |
035.4 |
| 7 |
2001/05/31 15:54:29 |
051.5 |
079.4 |
036.4 |
082.5 |
054.1 |
051.7 |
041.7 |
038.2 |
037.8 |
| 8 |
2001/05/31 16:04:29 |
060.0 |
087.7 |
036.0 |
080.4 |
066.2 |
059.2 |
044.5 |
037.2 |
036.9 |
| 9 |
2001/05/31 16:14:29 |
064.7 |
092.4 |
034.1 |
089.9 |
071.1 |
067.8 |
051.5 |
038.3 |
037.7 |
| 10 |
2001/05/31 16:24:29 |
058.8 |
086.5 |
032.9 |
080.6 |
064.4 |
059.9 |
049.0 |
038.5 |
036.3 |
| 11 |
2001/05/31 16:34:29 |
052.8 |
080.5 |
033.7 |
072.5 |
057.2 |
053.4 |
041.8 |
035.6 |
035.1 |
| 12 |
2001/05/31 16:44:29 |
047.8 |
075.7 |
032.7 |
068.6 |
053.5 |
051.3 |
040.6 |
034.7 |
031.0 | |

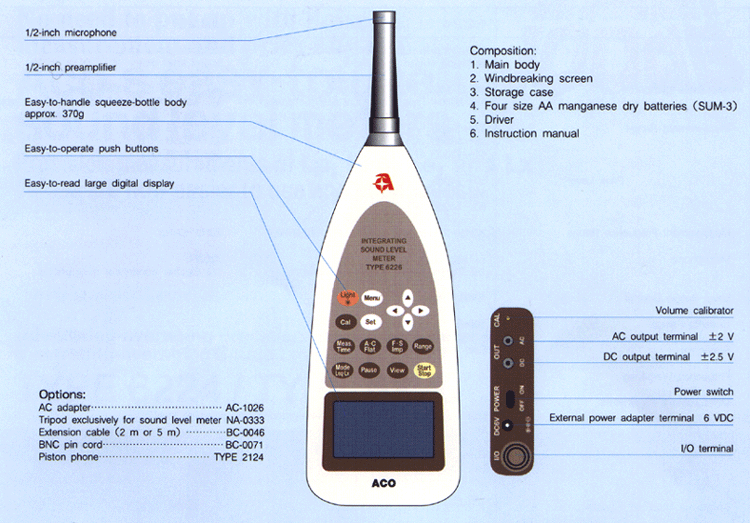

A squeeze-bottle body anyone can handle.
"Noise." Though it is an everyday problem, only experts are engaged in noise level measurements. Is it possible to make noise measurement easy even for beginners... Our simple question has triggered off the creation of a compact, light and easy-to-handle sound level meter with an excellent cost/performance ratio
This is an integrating-averaging sound level meter appropriate for environmental noise measurements, equipped with the following measurement functions; equivalent continuous A-weighted sound pressure level (Leq), sound exposure level (LE), and percentile level (Lx).
It is easily operated to fulfill various functions from measuring the noise of traffic, aircraft and machinery to quality control and diverse tests.

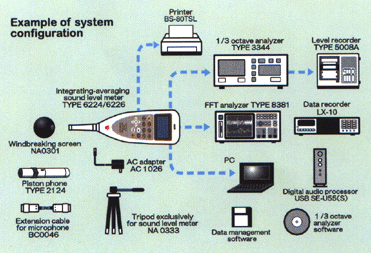

Standard equipment includes an RS-232C interface, and connection to an outer CPU enables continuous operation
Measurement results are expressed both by bar graph and numerically on a liquid crystal display.
Further, the wide dynamic range of 100 dB eliminates the need for range switching, realizing easier and more accurate measurements. | |
Features
| ● |

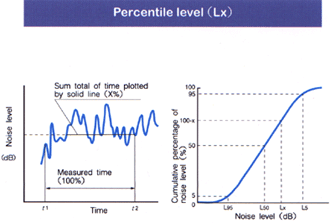

Percentile level (Lx) -any 5 selectable values |
| ● |
Measure equivalent continuous A-weighted sound pressure level capability (Leq) |
|
Measure environmental noise required for securing occupational health capability |
| ● |
Wide linearity range of 100 dB |
| ● |
Equipped with an RS-232C function, allows for processing of data by PC |
| ● |
Equipped with memory function, allows for storing up to 15,000 bits of data |
| ● |
Backite LCD screen for high-visibility and easy-on-the-eye display |
| ● |
Excellent cost/performance ratio overpowers comparably priced products |
| | | |
|
|
 | |
 |
|
 |
|
