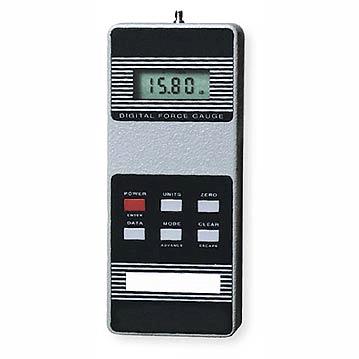

| Reversible aluminum housing for hand-held use or stand mounting.Three units of measurement: lb,kg(g),N |
|
Features |
- Reversible aluminum housing for hand-held use or stand mounting
- Three units of measurement: lb, kg(g), N
- Programmable initial status of units and mode of operation
- Programmable automatic shutoff
- Optional RS-232, Mitutoyo and analog outputs
- Automatic peak memory
- Push-button calibration
- Battery or AC operation
|
| | | SPECIFICATIONS
|
Accuracy |
±0.3% of full scale ±1 digit |
| Display rate |
2.5/sec. 30/sec in peak mode |
| Battery life |
8 -10 hours of continuous use |
| RS-232 (Optional) |
Fully configurable up to 9600 baud. |
| Sensor deflection |
0.010 [0.25 mm] deflection at full load |
| Safe overload |
150% of full range. Display shows "----" at 70% and above |
|
Weight
(gauge only) |
0.95 lb [0.4 kg] |
| Display |
4fi-digit LCD 0.3" [7.6 mm] high. Indicators for low battery, units and mode of operation |
| Sampling rate |
30 readings per second |
| Power |
AC or rechargeable battery with IPM, a 3-step Intelligent Power Management system that warns the user via "LO BAT" indicator and then will shut off the gauge |
| Mitutoyo output (Optional) |
Serial BCD suitable for all Mitutoyo SPC-compatible devices. |
| Analog output (Optional) |
±1 VDC ±0.25% of full scale at capacity. |
| Positive for compression, negative for tension |
| Included accessories |
Hook, flat |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| MK2124 |
|
EG025 |
|
0.25 x 0.0002 lb Digital Force Gauge |
|
Yes |
|
1,717,200 |
| Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above. |
| MK2125 |
|
EG05 |
|
0.5 x 0.0005 lb Digital Force Gauge |
|
Yes |
|
1,717,200 |
| Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above. |
| MK2113 |
|
EG2 |
|
2 x 0.002 lb Digital Force Gauge |
|
Yes |
|
1,501,200 |
| Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above. |
| MK2126 |
|
EG5 |
|
5 x 0.005 lb Digital Force Gauge |
|
Yes |
|
1,501,200 |
| Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above. |
| MK2127 |
|
EG10 |
|
10 x 0.01 lb Digital Force Gauge |
|
Yes |
|
1,501,200 |
| Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above. |
| MK2128 |
|
EG20 |
|
20 x 0.02 lb Digital Force Gauge |
|
Yes |
|
1,501,200 |
| Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above. |
| MK2115 |
|
EG50 |
|
50 x 0.05 lb Digital Force Gauge |
|
Yes |
|
1,501,200 |
| Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above. |
| MK2116 |
|
EG100 |
|
100 x 0.1 lb Digital Force Gauge |
|
Yes |
|
1,501,200 |
| Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above. |
| MK2129 |
|
EG200 |
|
200 x 0.2 lb Digital Force Gauge |
|
Yes |
|
1,717,200 |
| Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above. |
| MK2130 |
|
EG500 |
|
500 x 0.5 lb Digital Force Gauge |
|
Yes |
|
1,717,200 |
| Gauge comes supplied in a cushioned carrying case with an AC adapter, user's manual, and a set of accessories as listed in the table above. |
| MK2131 |
|
EGRS |
|
OPTIONAL Output (RS-232, Mitutoyo, analog, at time of order) FOR EG Digital Force Gauges |
|
Yes |
|
324,000
| | |
|
|
 | |
 |
|
 |
|
