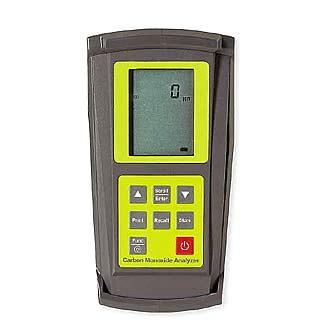

상품 상세보기 : Gas Analyzers - TP707 Single Gas Analyzer

Test flue gases in furnaces or combustion equipment and rooms or spaces for the presence

Test flue gases in furnaces or combustion equipment and rooms or spaces for the presence and location of CO leaks. Fits comfortably in your hand, operates with just the push of a button, and comes with a protective rubber boot.

Features

Fast response and clearing with advanced pump driven technology
Peak Hold to capture peak CO reading
Instrument will not shut off if 15 ppm CO is present, increasing safety
Store Button allows you to save up to eight readings and then print using the IR port and optional A740 printer
1-ppm resolution
CO Range 0 to 10,000 ppm
Push on fittings are fast and easy to use
Large, easy-to-read, backlit display
Pump flow block indicator
Advanced electrochemical sensor is field replaceable and calibrateable
Protective rubber boot and soft carrying case with shoulder strap included
Three-year limited warranty on tester and two year limited warranty on CO sensor

Applications

Test flue gases in furnaces or combustion equipment and rooms or spaces for the presence and location of CO leaks

SPECIFICATIONS

Range	0 to 10,000 ppm CO
Resolution	1-ppm
Response time	90% of reading within <60 seconds
Sensor	Electromechanical CO sensor/
Sensor	Two-year limited warranty
Warm Up	Approximately 20 seconds
Duty Cycle	30 minutes
Power supply	3 "AA" Alkaline Batteries
Battery Life	Approximately 30 hours
Size	3.75 " x 8" x 3" (95 x 203 x 76 mm)
Weight	1.1 lbs (500 g)
Probe length	9 inches (230 mm)
Tube Length	5 feet (152.4 cm)

CAT NO.

MODEL

DEscRIPTION

AVAIL

PRICE

TP707

707

Single Gas Analyzer with protective boot, soft shoulder strap carrying case

Yes

810,000

Pump Protective Filter Assembly, In-line Filter Assembly, Flue Probe, three "AA" batteries

TP706

A706

CO replacement sensor

Yes

215,892

TP733

A733

Calibration kit

Yes

475,092

TP728

A728

Calibration gas

Yes

151,092

TP740

A740

IR printer

Yes

431,892

TP762

A762

In-line filter assembly

Yes

64,692

TP729

A729

Flue probe

Yes

129,492
