| Measures inductance, capacitance and resistance, 28 control positions to test a wide range of components |
|
Model LCR55 |
- Measures inductance, capacitance and resistance
- 28 control positions to test a wide range of components
- Inductance with seven ranges from 200µH to 200H
- Capacitance has nine ranges from 200pF to 20mF
- Resistance with seven ranges from 20ohm to 20Mohm
- Zero out stray resistance with front panel control
- Also tests diodes, microwave diodes and transistors
- Shipped with safetey test leads w/screw-on alligator clips, protective holster and manual
|
| |
|

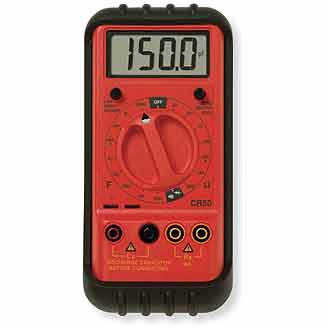

Model CR50 |
- Pocket-sized Capacitance and Resistance meter
- Measure capacitance in nine ranges from 200pF to 20mF
- Seven ranges for resistance from 20ohm to 20Mohm
- Diode test function and a continuity beeper
- External meter knob adjusts out stray capacitance and resistance
- Shipped with safetey test leads w/screw-on alligator clips, protective holster and manual
|
| | | SPECIFICATIONS
| |
MN1250 |
MN1255 |
| Inductance |
— |
200H |
| Resolution |
— |
0.1uH in 200uH range |
| Capacitance |
20,000uF |
20,000 uF |
| Resolution |
0.1pF in 200pF range |
0.1pF in 200pF range |
| Resistance |
20M Ω |
20M Ω |
| Resolution |
0.01 Ω in 20 Ω range |
0.01 Ω in 20 Ω range |
| Diode |
Yes |
Yes |
| Continuity |
Yes |
— |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| MN1255 |
|
LCR55 |
|
LCR Meter |
|
Yes |
|
388,692 |
| MN1250 |
|
CR50 |
|
Capacitance and Resistance Meter |
|
Yes |
|
183,492 |
| FL231 |
|
VC231 |
|
Carry Case for LCR55 |
|
Yes |
|
34,452 |
| FL30 |
|
VC30 |
|
Optional Carry Case |
|
Yes |
|
32,292 | | |
|
|
 | |
 |
|
 |
|
