| Measures Capacitance and Inductance to 0.7% and Resistance to 0.5% |
|
Features |
- Measures Capacitance and Inductance to 0.7% and Resistance to 0.5%
- Simultaneous 20,000/10,000 count display of the primary parameter (L, C or R) with the secondary parameter of Q (quality), D (Dissipation) or R (resistance)
- Test frequencies of 120 Hz and 1 kHz
- Set Hi/Lo limits using absolute values or percentage limits
- Selectable Parallel or Series equivalent circuit
- 4-1/2 digit backlit LCD display provides resolution to 0.1 pF, 0.1 µH and 0.001Ohms
- Max/Min/Avg recording
- Built-in test fixture or use external test leads
- Open and Short Zero removes unwanted stray impedances from the measurement
- Relative mode with zero reference or user supplied reference
- Powered by 9V battery or optional AC adaptor
- Complete with test leads, alligator clips, 9V battery and protective holster
|
| | | SPECIFICATIONS
| |
Ranges |
| Inductance |
2000.0μH, 20.000mH, 200.00mH, 2000.0 mH, 20.000H, 200.00H, 2000.0H, 20000H |
| Capacitance |
2000.0pF, 20.000nF, 200.00nF, 2000.0nF, 20.000μF, 200.00μF, 2000.0μF, 10.000mF |
| Resistance |
20.000Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ |
| DF (with C) |
0 to 0.9999 |
| Q |
0 to 9999 |
| Test Frequency |
120 Hz and 1 kHz |
| Dimensions/Weight |
7.56 x 3.58 x 2.1" (19.2 x 9.1 x 5.25 cm)/12.87 oz (365 g) |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| EH380193 |
|
380193 |
|

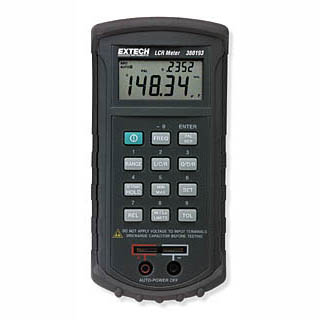

PASSIVE COMPONENT LCR METER |
|
Yes |
|
408,240 |
| EH380194 |
|
SW193 |
|
OPTIONAL Software and Cable FOR Passive Component LCR Meter |
|
Yes |
|
75,600 |
| EH1194153 |
|
153117 |
|
OPTIONAL AC ADAPTER 117VAC FOR Passive Component LCR Meter |
|
Yes |
|
41,040 | | |
|
|
 | |
 |
|
 |
|
