| 3-3/4 Digit (3999 count) multi-function LCD with Data/Peak Hold, Measure AC/DC Voltage to 600V |
|
Features |
- 3-3/4 Digit (3999 count) multi-function LCD with Data/Peak Hold
- Measure AC/DC Voltage to 600V and AC Current to 600A
- AC measurements over wide (40 to 450Hz) frequency range
- Plus Resistance, Frequency, Capacitance, and Temperature with selectable °C/°F units
- ±0.75% basic DC accuracy
- Diode test and audible Continuity
- Clamp jaws open to 1.6"(40mm)
- Overload Protection to 800A and 600Vrms
- Overrange and low battery indication
- Meets IEC1010 for CAT III 600V
- Complete with bead wire temperature probe, test leads, 9V battery and case
|
| | | SPECIFICATIONS
|
|
Ranges |
Max Resolution |
Basic Accuracy (%rdg + digits) |
| DC Voltage |
600V |
0.1V |
±(0.75% + 2d) |
| AC Voltage |
400V, 600V |
0.1V |
±(1.2% + 5d) |
| AC Current |
400A, 600A |
0.1A |
±(2% + 10d) |
| Capacitance |
2000μF |
1μF |
±(3% + 5d) |
| Frequency |
4kHz |
1Hz |
±(0.5% + 5d) |
| Temperature |
-4 to 1832°F (-20 to 1000°C) |
1°F/C |
±(3% + 8°F); ±(2% + 3°C) |
| Resistance |
4kΩ |
1Ω |
±(1% + 5d) |
| Continuity |
Audible tone < 40Ω |
| Power |
9V battery |
| Dimensions |
9 x 3 x 1.5" (228 x 76 x 39mm) |
| Weight |
15oz. (465g) |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| EH380973 |
|
380973 |
|

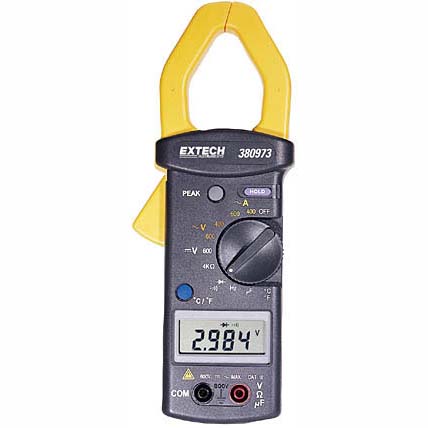

TRUE RMS AC CLAMP-ON METER |
|
Yes |
|
386,640 |
| EH480172 |
|
480172 |
|
AC LINE SEPARATOR 3-PRONG PLUG |
|
Yes |
|
41,040 |
| EH805 |
|
TL805 |
|
SPARE SET OF CAT III - 1000V TEST LEADS |
|
Yes |
|
32,400 |
| |
|
|
 | |
 |
|
 |
|
