| 3-3/4 Digit (3999 count) LCD with Data/Peak Hold and 40-segment bargraph |
|
Features |
- 3-3/4 Digit (3999 count) LCD with Data/Peak Hold and 40-segment bargraph
- L1, L2, L3 (R,S,T) Phase Rotation Test with LCD status indication
- Measure AC Voltage to 600V and AC Current to 1000A
- AC measurements over wide (40 to 400Hz) frequency range
- Functions include Resistance, Frequency and Capacitance
- ±1.2% basic ACV accuracy
- Diode test and audible Continuity
- Clamp jaws open to 1.6" (40mm)
- Overload Protection to 700A and 600Vrms
- Overrange and low battery indication
- Meets IEC1010 for CAT III 600V
- Complete with test leads (3), 9V battery and case
|
| | | SPECIFICATIONS
| |
Ranges |
Max Resolution |
Basic Accuracy (%rdg+digits) |
| AC Current: |
40A, 400A, 1000A |
0.01A |
± (2% + 5d) |
| AC Voltage: |
400V, 600V |
0.1V |
± (1.2% + 5d) |
| Phase |
80V to 480V |
0.1V |
± (1.2% + 5d) |
| Capacitance |
400μF |
1μF |
± (3% + 5d) |
| Frequency |
4kHz |
1Hz |
± (0.1% + 1d) |
| Resistance |
40kΩ |
10Ω |
± (1% + 1d) |
| Continuity |
Audible tone < 40Ω |
| Power |
9V battery |
| Dimensions |
9 x 3 x 1.5" (228 x 76 x 39mm) |
| Weight |
13oz. (370g) |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| EH380974 |
|
380974 |
|

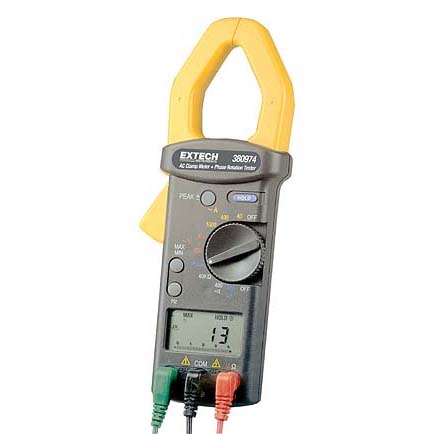

AC Clamp meter + Phase Rotation Tester |
|
Yes |
|
321,840 |
| |
|
|
 | |
 |
|
 |
|
