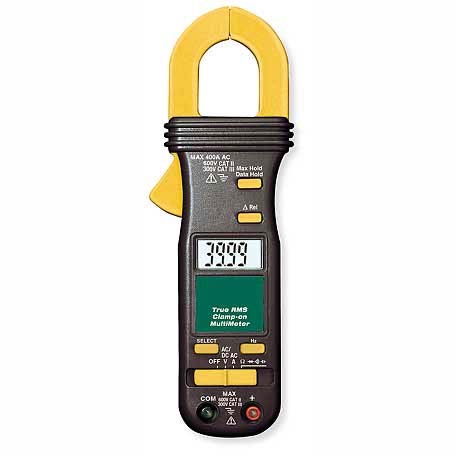

상품 상세보기 : 크램프메터 Clamp Meter - EHMA420 SIngle Display 400A AC

The MiniAmp™ Series of AC Clamp-on multimeters are available in three models each

The MiniAmp™ Series of AC Clamp-on multimeters are available in three models each with a feature to fit a particular application. All models have a durable high impact case which will provide years of heavy duty use. The small size and low price does not disguise the many features and quality of the meters. The two display models offer simultaneous measurements of current plus voltage (power) or temperature or resistance. Other models offer a µA current function which is useful for flame rod testing and a TRMS feature which is ideal for measuring current where distortion and harmonics are a problem.

Features

AC Current – 1.1" jaw measures current to 400Amps
Displays – Models with One or Two large 4000 count displays
Common Functions – All models with Capacitance and Frequency
Advanced Functions – Models available with True RMS, Temperature and µA Current
Dual Displays – Two display models perform simultaneous measurements of AC current plus any multimeter function
Features – Autoranging, Peak current capture and Data Hold
Includes – Test leads, batteries, carrying case, and temperature probe (model EH460)

SPECIFICATIONS

Display (EH420)	4000 count
Display (EH440, EH460)	Two 4000 count displays
True RMS (EH420)	Yes
Basic DC Volt Accuracy	0.5%
AC Amp Range	0.01A to 400A
AC/DC μAmp Range (EH440, EH460)	0.1μA to 1000μA
AC Volt Range	1mV to 600V
DC Volt Range	0.1mV to 600V
Ohms Range	0.1Ω to 40MΩ
Capacitance Range	0.2nF to 3000μF
Frequency Range	0.001Hz to 50kHz
Temperature Range (F/C) (EH460)	0°F to 573°F
Continuity/Diode	yes

CAT NO.

MODEL

DEscRIPTION

AVAIL

PRICE

EHMA420

MA420

SINGLE DISPLAY 400A AC TRUE RMS MINI CLAMP-ON MULTIMETER

Yes

192,240

EHMA440

MA440

DUAL DISPLAY 400A AC MINI CLAMP-ON MULTIMETERS W/MICRO AMP FUNCTION

Yes

257,040

EHMA460

MA460

DUAL DISPLAY 400A AC MINI CLAMP-ON MULTIMETER W/TEMPERATURE

Yes

321,840

EH480172

480172

OPTIONAL AC LINE SEPARATOR 3-PRONG PLUG FOR MiniAmp™ Series Digital Clamp-on Multimeters

Yes

41,040
