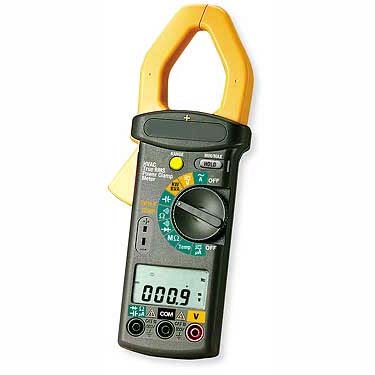

EH380975 HVAC True RMS Power Clamp Meter
    ¡¤ °í°´¼±È£µµ :
    ¡¤ Á¦Á¶»ç : DAVIS
    ¡¤ Á¦Ç°¹øÈ£:EH380975
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
Measures True Power (kW), Apparent Power (kVA) and Phase Angle with Lead/Lag indicator
Features
  • Large dual LCD display (9999 count)
  • Measures True Power (kW), Apparent Power (kVA) and Phase Angle with Lead/Lag indicator
  • AC+DC µA current with 10nA resolution for flame rod tests
  • Max/Min recording with elapsed time indication
  • Auto Detect AC/DC Voltage measurements with simultaneous frequency display
  • Capacitance to 3500µF with 0.001µF resolution
  • High Resistance tests to 100M¥Ø
  • Type K, ¡ÆC/¡ÆF switchable, temperature to 1000¨¬F
  • Auto power off with disable feature
  • 1.6" (40mm) clamp jaw opening
  • Complete with test leads, Type K probe, carrying case and battery
  • CAT III-600V

SPECIFICATIONS
Function Max Range / Res. Basic Accuracy
True Power (W) 600kW / 10W ¡¾5%+ 20d
Apparent Power(kVA) 600kVA / 10kVA ¡¾2.5%+ 20d
Phase Angle (¨ª) -90 to +90¡Æ / 0.1¡Æ ¡¾0.3¡Æ
AC Current: (Trms) 1000A / 10mA ¡¾2%+ 20d
¥ìA Current (AC+DC) (Trms) 1000¥ìA / 10nA ¡¾1%+ 20d
AC/DC Voltage: (Trms) 600V / 0.1mV ¡¾1%+ 20d
Resistance (ohms) 1000k¥Ø / 0.1¥Ø ¡¾1%+ 10d
Resistance (Megohms) 100M¥Ø / 1k¥Ø ¡¾5%+ 10d
Capacitance 3500¥ìF / 1nF ¡¾1.5%+ 5d
Frequency 40Hz to 1kHz / 0.1Hz ¡¾0.5%+ 2d
Temperature (Type K)

-58 to 1000¡ÆF / 0.1¡ÆF
-50 to 900¡ÆC / 0.1¡ÆC

¡¾1%+ 2¡ÆF
¡¾1%+ 1¡ÆC
Frequency 40Hz to 1kHz / 0.1Hz ¡¾1%+ 2d
Dimensions/Weight 9 x 3 x 1.6" (228 x 76 x 39mm) / 16.4oz (465g)

CAT NO. MODEL DEscRIPTION AVAIL PRICE
EH380975   380975   HVAC True RMS Power Clamp Meter   Yes   429,840
EH480172   480172   OPTIONAL AC LINE SEPARATOR 3-PRONG PLUG FOR 1000 Amp HVAC True RMS Power Clamp-On   Yes   41,040
