| Maintain power systems, troubleshoot power problems, diagnose equipment features |
| Maintain power systems, troubleshoot power problems, diagnose equipment features

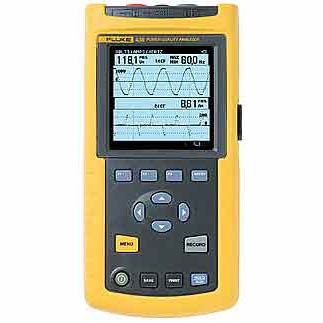

The Fluke 43B Power Quality Analyzer performs the measurements you need to maintain power systems, troubleshoot power problems and diagnose equipment failures. All in a rugged handheld package. |
| |
|
Features |
- Measure power harmonics and catch intermittents
- Voltage, current and power harmonics
- Up to 51st harmonic
- Total harmonic distortion (THD)
- Phase angle of individual harmonics
- Voltage and current waveforms
- True-rms voltage and current
- Frequency
- Watts, power factor, displacement power factor, VA and VAR
- Catch voltage transients and waveform distortion
- Catch and save up to 40 transients
- Measures resistance, diode voltage drop, continuity, and capacitance
- Records two selectable parameters for up to 16 days
- Supports temperature accessories with direct readout in degrees
- 10 measurement memories for saving screens
- 3 year warranty on the Fluke 43, 1 year on accessories
|
| |
|
Included Accessories |
- TL24 Test Leads
- AC20 Industrial Test Clips
- AC85 Large Jaw Alligator Clips
- TP1 Flat-tipped Slim-ReachTM Test Probes
- Power Quality Video
- 80i-500s 500A AC Current Clamp
- TP4 4 mm Round Slim-ReachTM Test Probes
- SW43W FlukeView® Analyzer Software for Windows
- PM 9080/001 Optically Isolated RS232 Interface Adapter
- BP120 Rechargeable Ni-Cd battery Pack (installed)
- PM 8907 Line Voltage Adapter/Battery Charger
- Shielded Banana-to-BNC Adapter
- FlukeView® Power Quality Analyzer Users Manual
|
| | | SPECIFICATIONS
|
Input Characteristics |
Ranges |
Accuracy |
| Input impedance |
1 MΩ, 20 pF |
|
| Voltage rating |
600V rms, CAT III |
|
| Volt/Amps/Hertz Display |
| True-rms voltage (ac + dc) |
5.000V, 50.00V, 500.0V, 1250V* |
±(1% + 10 counts) |
| True-rms current (ac + dc) |
50.00A, 500.0A, 5.000 kA, 50.00 kA |
±(1% + 10 counts) |
| Mains frequency |
40.0 to 70.0 Hz |
±(0.5% + 2 counts) |
Power, Watts, Volt-Amps,
VA Reactive Volt-Amps, VAR |
250W, 2.50 kW, 25.0 kW, 250 kW, 2.50 MW |
±(1% + 1 counts) |
| Power Factor, PF, Displacement Power Factor, DPF |
0.00 to 0.25, 0.25 to 1.0 |
Not specified ±0.01 |
| Harmonics Display |
| Voltage |
1st to 51st harmonic |
±(3% + 2 counts) to ±(15% + 5 counts) |
| Current |
1st to 51st harmonic |
±(3% + 8 counts) to ±(5% + 8 counts) |
| Power |
1st to 51st harmonic |
±(5% + 2 counts) to ±(30% + 5 counts) |
| Line frequency |
40 Hz to 70 Hz fundamental |
±0.25 Hz |
| Phase |
2nd to 51st harmonic |
±3° to ±15° |
| K-factor |
1.0 to 30.0 |
±10% |
| Sags and Swells Recording |
| Recording times |
4 min to 16 days (selectable) |
| Installed battery |
Rechargeable Ni-Cd pack |
| Operating time |
4 hours |
| Temperature |
0°C to 50°C (32°F to 122°F) |
| Size (H x W x D) |
232 x 115 x 50 mm (9.1 x 1.5 x 2 inches) |
| Weight |
1.1 kg (2.5 lbs) |
| Surge protection |
6 kV on input A and B |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| FL43K |
|
43/003 |
|
POWER QUALITY ANALYZER |
|
Yes |
|
4,030,020 | | |
|
|
 | |
 |
|
 |
|
