| Applications: For measurement, control and warnings in garages, for monitoring the air quality |

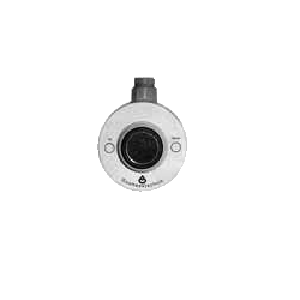

FYA600CO Carbon
Monoxide Probe Type
● Applications:
For measurement, control and warnings in garages, for
monitoring the air quality with respect to the maximum
allowable concentration at work places (MAC value, e.g. in laboratories
and engine test benches), for monitoring the outside air or protected air
systems in house shelters or large shelter buildings.
● Particularly
suitable for long-term measurements of the carbon monoxide concentration
in air, in a range from 0 … 150ppm to 0 … 5vol%.
| Type: |
| FYA600CO |
Carbon monoxide sensor including connecting
cable 1.5m long for CO measurements in air |
|
| Technical Data: |
| Gas: |
CO |
| Measuring principle: |
electrochemical reaction |
| Measuring range: |
0 … 150 ppm, 0 … 300 ppm,
0 … 5% |
| Zero point error: |
< 10 ppm CO |
| Gauge reading balance: |
< 3 ppm CO |
| Error of meas. value: |
±3% of full scale value |
| Zero point drift: |
< 2% (1 year) |
| Reproducibility: |
< 2% (1 year) |
| Linearity: |
< 2% of full scale value |
| Settling time t90: |
< 60s |
| Transverse sensitivity: |
< 2% by integrated filter |
| Output: |
4 ... 20 mA on ALMEMO® connector |
| Supply voltage: |
from the ALMEMO® measuring
instrument |
| Ambient temperature: |
-10 to +40°C, sensor temperature
compensated in range |
| Air humidity: |
0 to 90% non-condensing |
| Life span of the meas. cell: |
approx. 2 years |
| Dimensions of meas. head: |
Ø 80mm, height 80mm |
| Weight: |
600g |
| Connecting cable: |
1.5m, with ALMEMO® connector |
|
| |
|
|
 | |
 |
|
 |
|
