| Measurements in air conditioning systems, air purifiers, oxygen rectifiers, greenhouses and oxygen incubators. |

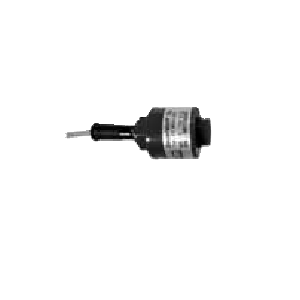

FYA600O2 Oxygen
Probe Type
● Examples from the
range of applications:
Measurements in air conditioning systems, air purifiers, oxygen rectifiers,
greenhouses and oxygen incubators.
● Approved by
PTB and approved for exhaust emission measurements in the automotive industry.
▒ A correction value can be
stored in the ALMEMO® connector plug to compensate for the natural ageing
of the probes, so optimum output characteristics can be ensured for the
whole operating
| Type: |
| FYA600O2 |
Oxygen sensor
including connecting cable 1.5m long for O2 measurements in air |
| For Reordering: |
| FY9600O2 |
Oxygen sensor |
| ZA9600AKO2 |
ALMEMO® connecting cable |
|
| Technical Data: |
| Gas: |
O₂ |
| Measuring principle: |
electrochemical cell |
| Measuring range: |
1 … 100% O₂, linear |
| Accuracy : |
1% O₂ |
| Resolution : |
0.01% O₂ |
| Response time: |
< 40s |
| Signal drift: |
< 2% signal/month
(typ. < 5% over operating life) |
| Offset voltage at 20°C: |
< 20μV |
| Operating life: |
2 years, if operated in 20.9% O₂ |
| Nominal conditions: |
20°C, 50% rH, 1013mbar |
| Temperature range: |
-20 to +50°C |
| Temperature compensation: |
effective in range -10 to +40°C |
| Pressure range: |
atm. pressure ±10% |
| Relative humidity: |
0 to 99% non-condensing |
| Connecting cable: |
adapter cable 1.5m long |
| Dimensions: |
H 43mm x Ø 29.3mm |
|
| |
|
|
 | |
 |
|
 |
|
