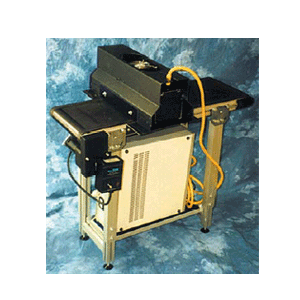

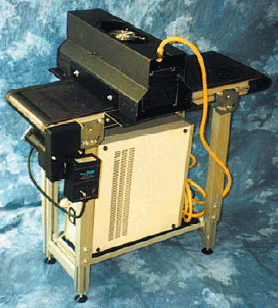

CON-TROL-CURE® UV-10
CONVEYORIZED CURING SYSTEM
The UV-10 Conveyorized Curing System meets the needs of today's duplicators
and laboratories by delivering state-of-the-art curing technology at a fraction
of the cost of competitive systems.
Designed to produce 1600W of curing power economically and within a fully
encased system, the UV-10 incorporates a complete power supply and a 10"
Lighthouse irradiator to deliver the maximum level of cure energy from a
standard 110V outlet.
As traditional elliptical reflectors diminish output efficiency by failing
to fully focus lamp energy and by reflecting light behind the irradiator
directly back into the lamp, the Lighthouse's innovative 3/4 elliptical
reflector (patent-pending) effectively redirects trapped light directly
onto the substrate. As a result, the Lighthouse produces cure results comparable
to standard 200W/in systems...a remarkable 20% increase! |
The Lighthouse utilizes an irradiator positioning
system that allows the operator to adjust lamp holders to handle different
diameter lamps or to effectively adjust focused cure energy. The Lighthouse
irradiator can accept different arc lengths with minimal field modification
when higher intensity curing power is required. By reducing the size of
the lamp, energy usage is more concentrated, thus producing a higher intensity
exposure.
The multi-part reflector allows the lamp to operate at the desired temperature
without excessive heat build-up within the housing. This highly reflective
material can also be easily replaced without the need to replace the entire
housing itself.
The UV-10 conveyor features a variable speed DC drive with maximum belt
speed of 100 ft/minute, nearly doubling the standard speed of most duplicator
presses. Featuring a heat-resistant mesh belt to withstand heat build-up
and degradation, the UV-10 conveyor also features speed and belt tension/tracking
adjustment, plus belt height adjustment from 24" to 48" for meeting
in-line demands of individual production lines.
Sturdy, lightweight frame with 4-leg conveyor leveling allows the UV-10
to be used anywhere in the shop or lab. Utilizes maintenance-free gear belts,
gear motor and bearings for minimal downtime. Compact size fits into confined
work environments. Requires only two 110V outlets to deliver complete performance
requirements.
CONVEYOR SPECIFICATIONS:
| ● Power: |
110/220V, 60/50 Hz, 3.5A |
| ● Conveyor Motor: |
Variable speed DC motor, 1/15 hp, 130 rpm |
| ● Belt Speed: |
100 FPM |
| ● Belt Width: |
12" |
| ● Overall Dimensions: |
36"L x 14"W x 24-48"H (adjustable) |
| ● Mesh Construction: |
Nomex® (heat-resistant) with Clipper® |
| ● Controls: |
on/off switch, speed potentiometer (0-100% in 10%
increments), belt tension/tracking adjustment |
UV-10 LAMP HOUSING SPECIFICATIONS:
| ● Power: |
110/220V, 60/50 Hz, 15A |
| ● Arc Length: |
10" |
| ● Lamp Energy: |
1600W (160W/in) |
| ● Reflector Type: |
3/4 ellipse |
| ● Controls: |
on/off, ammeter |
| Part Number |
Description |
Units |
| A012-023 |
UV-10 CONVEYOR 10"W x 36"L |
EACH |
| A012-024 |
UV-10 10" SHUTTERED LAMP SYSTEM |
EACH |
|
|
| |
|
|
 | |
 |
|
 |
|
