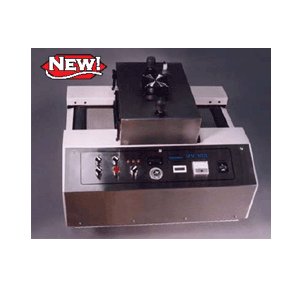

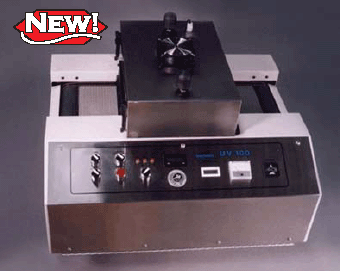

UV 100 MINI CONVEYOR
UV Process Supply offers the CON-TROL-CURE® UV 100 Mini Conveyor System,
a benchtop system housed within a powder coated steel enclosure. The rugged
construction and intelligent design provide excellent solvent resistance
and long-term durability. The UV 100 is a component system designed for
general UV bench testing and for smaller production applications including
electronic components, plastic cards, CD/DVD replication, panels and signs.
It is an ideal addition to the small shop utilizing UV technology. |
The 8'' effective cure area has variable curing
power ranging from 125 to 300W/in (400W/in available) with a quick adjustment
light guard and focus to 1.25". It has a 10" in-feed and exit
area for easy part handling. The UV 100 irradiator is constructed of anodized
aluminum and stainless steel. The irradiator opens quickly for lamp inspection
and replacement. The hard-wired lamp system will not corrode or arc. The
system also utilizes a separate forced air cooling of substrate and the
UV irradiator.
Versatile, compact and easy to use, the UV 100 weighs 150 lbs and measures
only 32"L x 28"W x 18"H. It arrives ready to be mounted on
your bench top and put to work.
Each 220V unit delivers up to 300W/in. The system features separate main
and lamp power switches, panel-mounted hour meter for lamp replacement indication,
and ammeter for circuit strength indication.
STANDARD FEATURES:
● 300W/in nominal output
● Variable DC drive provides speeds from 10 to 90
FPM
● Compact design is ideal for use within confined
environments
● 10" wide UV resistant, Teflon®-coated, open
mesh conveyor belt
● Perfect for small applications such as circuitry,
replication, labeling, etc.
OPTIONS:
● Heavy-duty stand with casters or leveling pads
● 440V AC operation
● Exhaust reducer for 6" or 8" ducting
● Extra high curing chamber opening
● 400W/in curing power
● Gallium or Iron lamp
● 5-30 FPM variable speed control
● 5-200 FPM variable speed control
TYPICAL CURING APPLICATIONS:
| ● Electronic component
curing |
● Membrane switch
circuits and overlays |
| ● Metal or plastic sheet stock |
● Nameplates and tags |
| ● Pressure sensitive decals |
● Injection-molded plastic
parts |
| ● Circuit boards |
● Glass and ceramics |
| ● Instrument dials |
● Control panels |
| Part Number |
Description |
Units |
| A012-029 |
UV 100 MINI CONVEYOR |
EACH |
|
| |
|
|
 | |
 |
|
 |
|
