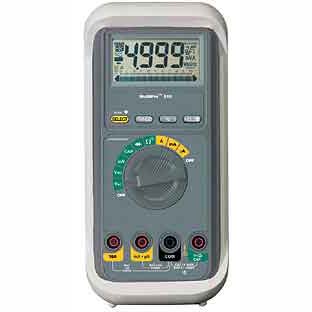

The Professional Series of multimeters are designed to provide the user a professional meter that will withstand the rigors of heavy duty use.
Performance, including accuracy and resolution, is unsurpassed by any 5000 count meter in this price range.
All models offer features such as wide AC bandwidth (20kHz) and PC interface. Selected models offer True RMS detection, 5ms Peak Hold and wide temperature measurements. |
|
|
Features |
- Wide Bandwidth — 40Hz to 20kHz AC Voltage bandwidth
- True RMS — for non-sinusoidal waveforms (EHMP520, EHMP530)
- Added features — Model EHMP530 offers Temperature, Relative, Min/Max and Peak Hold
- PC Interface — Optional Windows® compatible software
- Includes — Built-in stand with belt clip, CAT III test leads, protective holster, 9V battery, and temperature probe (EHMP530 only)
- 3 Year Warranty
|
| |
| SPECIFICATIONS
|
Basic DC Volt Accuracy |
0.08% |
| Display |
5000 counts (backlit) |
| True RMS |
MP520, MP530, ML710, ML720 |
| AC Amp Range |
0.1uA to 10A (20A for 30 sec.) |
| DC Amp Range |
0.1uA to 10A (20A for 30 sec.) |
| AC Volt Range |
0.01mV to 1000V |
| DC Volt Range |
0.01mV to 1000V |
| Ohms Range |
0.01Ω to 50MΩ |
| Capacitance Range |
0.01nF to 9999μF |
| Frequency Range |
0.001Hz to 125kHz |
| Temperature Range(MP530) |
-58°F to 1832°F (-50 to 1000°C) |
| Continuity |
yes |
| RS 232 Interface |
yes |
| Software / Cable |
optional for MultiPro, included for MultiLog |
| Catalog No. |
Description |
Price |
| EHMP510 |
Professional MultiMeter |
232,529 |
| EHMP520 |
True RMS Professional MultiMeter |
263,741 |
| EHMP530 |
True RMS Professional MultiMeter with temperature |
279,347 |
| EHML710 |
Datalogging Multimeter, 5,400 points |
419,801 |
| EHML720 |
Datalogging Multimeter, 43,000 points |
507,195 | | |
|
|
 | |
 |
|
 |
|
