| True RMS — for non-sinusoidal waveforms (MP520, MP530) |

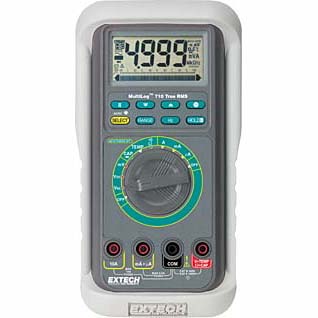

| The MultiPro Series of multimeters are designed to provide the user a professional meter that will withstand the rigors of heavy duty use. The rugged splash proof case is enhanced with an extra thick protective holster that prevents meter damage from everyday bumps and drops. Performance, including accuracy and resolution, is unsurpassed by any 5000 count meter in this price range. All models offer features such as wide AC bandwidth (20kHz), PC interface and Cat III 600V and UL approvals. Selected models offer True RMS detection, 5ms Peak Hold and wide temperature measurements. |
|
|
Features |
- High Accuracy — 0.08% Basic DCV accuracy with 0.1mV resolution
- Display — Backlit 5000 count LCD display with bargraph
- Wide Bandwidth — 40Hz to 20kHz AC Voltage bandwidth
- PC Interface — Optional Windows® compatible software
- True RMS — for non-sinusoidal waveforms (MP520, MP530)
- Added features — Model MP530 offers Temperature, Relative, Min/Max and Peak Hold
- Includes — Built-in stand with belt clip, CAT III test leads, protective holster, 9V battery, and temperature probe (MP530 only)
- 3 Year Warranty
|
| |
| SPECIFICATIONS
|
EHMP510 |
EHMP520 |
EHMP530 |
| Basic DC Volt Accuracy |
0.08% |
0.08% |
0.08% |
| AC Amp Range |
0.1uA to 10A
(20A for 30 sec.) |
0.1uA to 10A (trms)
(20A for 30 sec.) |
0.1uA to 10A (trms)
(20A for 30 sec.) |
| DC Amp Range |
0.1uA to 10A
(20A for 30 sec.) |
0.1uA to 10A
(20A for 30 sec.) |
0.1uA to 10A
(20A for 30 sec.) |
| AC Volt Range |
0.01mV to 1000V |
0.01mV to 1000V (trms) |
0.01mV to 1000V (trms) |
| DC Volt Range |
0.01mV to 1000V |
0.01mV to 1000V |
0.01mV to 1000V |
| Ohms Range |
0.01Ω to 50MΩ |
0.01Ω to 50MΩ |
0.01Ω to 50MΩ |
| Capacitance Range |
0.01nF to 9999μF |
0.01nF to 9999μF |
0.01nF to 9999μF |
| Frequency Range |
0.001Hz to 125kHz |
0.001Hz to 125kHz |
0.001Hz to 125kHz |
| Temperature Range (F/C) |
N/A |
N/A |
-58°F to 1832°F |
| Continuity |
yes |
yes |
yes |
| RS 232 Interface |
yes |
yes |
yes |
| Software / Cable |
optional |
optional |
optional |
| Catalog No. |
Description |
Price |
| EHMP510 |
Professional MultiMeter |
273,564 |
| EHMP520 |
True RMS Professional MultiMeter |
328,644 |
| EHMP530 |
True RMS Professional MultiMeter w/temp |
36,536 | | |
|
|
 | |
 |
|
 |
|
