| The UE150 & UE200 provides a simple, time-saving alternative to U-tube pressure measurements. |
| The UE150 & UE200 provides a simple, time-saving alternative to U-tube pressure measurements. The UE200 with dual input differential measurement has a duel scale: 60" water gauge and 150 mBar. To meet the high durability expectations of today’s technicians, the UE200 is equipped with sturdy metal fitting valves for a secure and solid connection and is protected by a ruggedized rubber-boot with a built-in magnet, allowing for hands free operations. The UE150 single input manometer has a simplified user interface which measures positive and negative pressure to 20" water gauge. |
| |
|

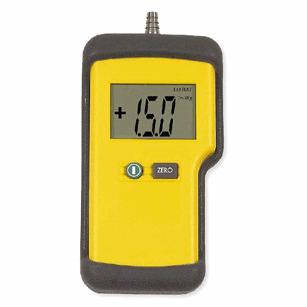

UE150 Single Input |
- Measures positive and negative pressure to 20" water gauge .05" resolution below 9.95"
- Ruggedized with sturdy metal fittings
- Rubber-boot with built-in magnet
- Auto power off
- One year limited warranty
|
| |
|
UE200 Dual Input |
- Dual scale: 60" water gauge and 150 mBar .01" wg resolution below 9.99"
- Ruggedized with sturdy metal fittings
- Rubber-boot with built-in magnet
- Min/Max
- Data hold
- Auto power off
- Back-lit display
- One year limited warranty
|
| | | SPECIFICATIONS
| |
Parameter |
Resolution |
Accuracy |
Range |
| UE150 Single Input Manometer |
| |
Water Gauge |
0.05" -9.95" to +9.95" WG
0.1" < -10", > +10" WG |
±1.5% FS |
-20" to +20" WG |
| |
Operating Range |
32 -104°F (0 - 40°C),
10 - 90% RH non condensing |
|
|
| |
Battery Life |
50 hours min with alkaline battery |
| UE200 Dual Input Manometer |
| |
Water Gauge |
0.01" -9.99" to +9.99" WG
0.1" < -10", > +10" WG |
±1.5% FS |
-60" to +60" WG |
| |
mBar |
-150 to +150 mBar |
| |
Operating Range |
32 -104°F (0 - 40°C), 10 - 90% RH |
| |
Battery Life |
40 hours min with alkaline battery |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| UE150 |
|
EM150 |
|
Single Input Electronic Manometer |
|
Yes |
|
213,840 |
| UE200 |
|
EM200 |
|
Dual Input Electronic Manometer with differential measurement |
|
Yes |
|
378,000
|
| |
|
|
 | |
 |
|
 |
|
