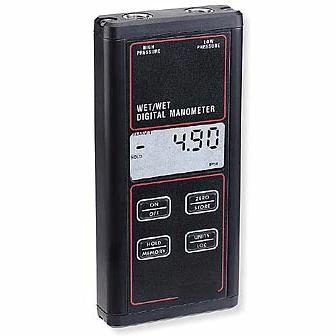

상품 상세보기 : Manometer - DW4901 0-15 PSI Wet/Wet Handheld Digital Manometer

Measures Virtually any Liquid Media Compatible with 316L Stainless Steel

These Digital Manometers are versatile, hand-held, battery operated manometers available in several basic ranges from 0-15.0 psi (0-100 kPa) to 0-100 psi (0-700 kPa). Units are highly accurate (±0.5% FS) for positive or positive differential pressure measurement and can tolerate most any liquid media compatible with 316L stainless steel.

You can select from up to seven common English and metric pressure units (PSI, in. H₂0, in. Hg, mm Hg, kPa, bar or mbar) so conversions are not necessary. A memory function allows storage of up to 20 readings for later recall and a backlight provides auxiliary lighting for hard-to-see locations.

Standard are a hold feature and both visual and audible overpressure alarms. A 9V alkaline battery is included that provides up to 100 hours of operation. Units have dual 1/8" female NPT connections.

Features

Measures Virtually any Liquid Media Compatible with 316L Stainless Steel
Instant Selection from up to Seven English/Metric Units
Stores 20 Readings in Memory for Later Reference
Both Audible and Visual Overpressure Alarms
Operates up to 100 Hours on a Single 9 Volt Battery

SPECIFICATIONS

Service	Compatible, non-combustible gases & liquids
Wetted Materials	Type 316L SS
Accuracy	±0.5% F.S., 60 to 78°F (15.6 to 25.6°C); ±1.5% F.S. from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C)
Pressure Hysteresis	±0.1% of full scale
Pressure Limits	See Chart
Temperature Limits	32 to 104°F (0 to 40°C).
Storage Temperature Limits	-4 to 176°F (-20 to 80°C)
Display	0.42" (10.6 mm) 4-1/2ý digit liquid crystal
Resolution See Chart
Power Requirements	9 volt alkaline battery. Battery included but not connected
Weight	14.1 oz. (400 g)
Connections	Two 1/8" (3.18 mm) female NPT
Agency Approvals	CE

CAT NO.

MODEL

DEscRIPTION

AVAIL

PRICE

DW4901

490-1

0-15 PSI Wet/Wet Handheld Digital Manometer

Yes

1,026,000

DW4902

490-2

0-30 PSI Wet/Wet Handheld Digital Manometer

Yes

1,026,000

DW4903

490-3

0-50 PSI Wet/Wet Handheld Digital Manometer

Yes

1,026,000

DW4904

490-4

0-100 PSI Wet/Wet Handheld Digital Manometer

Yes

1,026,000

DW4905

490-5

0-500 PSI Wet/Wet Handheld Digital Manometer

Yes

1,026,000
