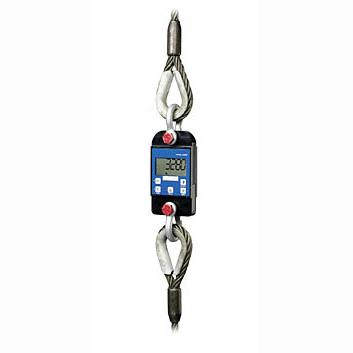

IP420101 High Cap Dig Tensionlink Scale
    ¡¤ °í°´¼±È£µµ :
    ¡¤ Á¦Á¶»ç : DAVIS
    ¡¤ Á¦Ç°¹øÈ£:IP420101
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
High performance electronics guarantee a wide range of easy to use functions for virtually any application
The TL6000 is the industry standard bearer delivering capacities from 1,000 lbs to 50 tons in al ight weight compact design. High performance electronics guarantee a wide range of easy to use functions for virtually any application

The state of the art 14 bit A/D microprocessor delivers more features and functions to ensure the TL6000 is a versatile yet easy to use tool. Everything is powered by two (9V) alkaline batteries that provide more than 500 hours of continuous use to ensure you are virtually never without power. No other tension link offers these all encompassing features in one complete unit.

Features
  • Readings are easily viewed via the jumbo sized 1.2 inch/30 mm high characters
  • All models capable of displaying up to five digits weights for high capacity weighing.
  • Nine large display icons identify the mode or function.
  • Standard controls, sealed in a mechanical membrane keypad for trouble free operation, include On/Off, Mode, Zero, Peak and Tare.
  • Readings can be displayed in lb/kg/Tons/Metric Tons and dekaNewtons. from 1,000 to 100,000 lbs
  • Two programmable set points alert the user when loads reach the preset levels.
  • Peak Hold updates up to fifty times per second for fast and immediate notification of maximum loads and breaking points.
  • Tare range is 100% of unit¡¯s capacity
  • Adjustable sample rates enable you to slow down or speed up the weighing process for greater stability of readings.
  • Programmable sleep mode adjusts battery consumption to meet your individual needs.
  • Adjustable auto shut off to conserve battery life
  • Serial data output via RS232 or RS485 in continuous or demand mode
  • Adjustable baud rate from 30-19,200 interfaces with almost any remote device
  • Error messages for fast and easy troubleshooting. Eliminates guess work when determining nature of problem.
  • Display update rate can be programmed for most any application
  • Low battery indication
  • Top and Bottom shackles (Crosby or equal)
  • Portable carrying case (waterproof)
  • Single display remote control (TL-IND1 hardwire or TL-RF1 wireless)
  • Tandem display remote control (TL-IND2 hardwire or TL-RF2 wireless)
  • Set point relay output control kit
  • AC or DC power input (specify power requirements)
  • Analog output
  • Multi-load sensor input and summing
  • Set point audible alarm


CAT NO. MODEL DEscRIPTION AVAIL PRICE
IP420101   TL6000-1000   HIGH CAP DIG TENSIONLINK SCALE1000LB/500KGS   Yes   2,484,000
IP420103   TL6000-5000   HIGH CAP DIG TENSIONLINK SCALE5000LB/2500KGS   Yes   2,797,200
IP420105   TL6000-25000   HIGH CAP DIG TENSIONLINK SCALE25000LB/12500KGS   Yes   3,877,200
IP420107   TL6000-100,000   HIGH CAP DIG TENSIONLINK SCALE100,000LB/50,000KGS   Yes   6,804,000



IP420108   TL5000   OPTIONAL 500-5000 LB (3 1/4 TON) (PAIR)SHACKLE 3LB/1.4KG FOR High Capacity Digial TensionLink Scales   Yes   311,040



IP42070   TL-25000   OPTIONAL TL6000 TENSIONLINK SCALE 25,000LB SHACKEL(PR) TL-25000 FOR High Capacity Digial TensionLink Scales   Yes   1,477,440



IP420112   TL-100000   OPTIONAL TL6000 TENSION LINK SCALE 100,000LB SHACKLE(PR)TL-100000 FOR High Capacity Digial TensionLink Scales   Yes   4,380,480
