222-D Vibration Profiler / Analyzer / Balancer
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
¡Ü Provides accurate permanent record of vibration amplitude and frequency
¡Ü Digital frequency meter — 1% accuracy
¡Ü Read and record both displacement and velocity
¡Ü Accepts standard 8 1/2" ¢®¢¯ 11" paper. Transparent sheets can be used for overlay comparison
¡Ü Broadband meter readings for quick condition indication
¡Ü Accessory strobe for balancing and phase frequency range
¡Ü Automatic sweep — one- or three- decade frequency range
¡Ü Fully portable — power from rechargeable battery or line power
¡Ü Built-in battery charger
¡Ü Balancing accessories:
       Strobe light
       Calculator (HP-48) programmed for single- and        two-plane balancing
¡Ü Sweep switch —
       "auto" for full automatic sweep recording
       "manual" for reading frequency on digital meter
       and balancing
¡Ü Input selector for reading and recording either of two vibration pickups

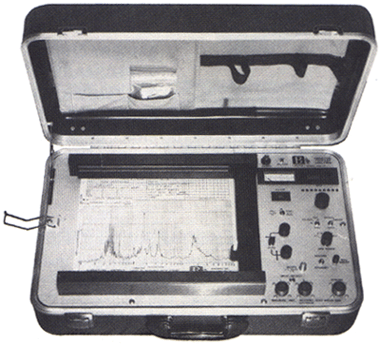

The Model 222-D Vibration Profiler/Analyzer is a sweeping frequency analyzer and X-Y recorder which provides accurate and permanent records of vibration amplitude versus frequency. Fully portable, it is ideal for field service as well as for in-plant maintenance and balancing.

   It is both a quality-assurance and a preventive maintenance tool, which enables personnel to make on-the-spot analysis as well as permanent records for future comparisons.

   The X-Y recorder accepts standard 8 1/2" ¡¿ 11" calibrated paper. Use of transparent sheets permits instant

comparison when they are used as overlays over previous charts.

       Profiles can be used to establish base-line vibration data for future comparisons of equipment changes for trend analysis.

       Use it for broadband vibration surveys, automatic or manual profile recording, vibraiton analysis and balancing of rotating machinery.

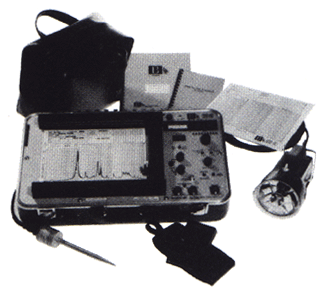

       The instrument is housed in a rugged carry-on size carrying case and is complete with battery, integral charger and standard accessories.
SPECIFICATIONS
AMOUNT RANGE      (English) 0.03, 0.1, 0.3, 1, 3, 10, 30, 100
mils (peak to peak) and in/sec (peak) full scale
(optional)      (Metric) 1, 3, 10, 30, 100, 300, 1000, 3000
¥ìm (peak to peak) and mm/sec (peak) full scale
FREQUENCY RANGES—SELECTABLE      200 to 2,000 CPM
2,000 to 20,000 CPM
20,000 to 200,000 CPM
200 to 200,000 CPM
UNIT ACCURACY      5%
FILTER BANDWIDTH      Constant 5.5% (Q = 18)
FREQUENCY RESPONSE      200 rpm to 200,000 rpm
SWEEPING TIME (Typical)      1 minute
BATTERY CAPACITY      100 average traces (typical)
POWER REQUIREMENTS      115/230 Vac 50/60 Hz or internal battery
(Maintenance-free sealed lead-acid rechargeable battery)
BATTERY CHARGER      Built-in battery charger from line voltage
RECHARGE TIME      10 to 12 hours
OPERATION TEMPERATURE      32¢ªF to 122¢ªF (0¢ªC to 50¢ªC)
STORAGE TEMPERATURE      -10¢ªF to + 122¢ªF (-23¢ªC to + 50¢ªC)
OVERALL DIMENSIONS      7" ¡¿ 15" ¡¿ 21" (18 cm ¡¿ 38 cm ¡¿ 53 cm)
WEIGHT      26 lbs. (11.8 kg), includes accessories
ACCESSORIES SUPPLIED      Transducer
Strobe Light with Cable   Model 296
15-ft. Vibration Pickup Cord
051 Probe
055 Magnetic Pickup Base
Power Cord
Accessory Case
8201A Vibration Profile Sheets
8202A Vibration Profile Sheets
Recording Pens
ACCESSORIES AVAILABLE      Shipping Case
Recording Pens (black, red, green, blue)
Metric Calibration
HP-48 Balancing Calculator   Model BAL-CP
VIBRATION PROFILER / ANALYZER BALANCER
MODEL 222-D VIBRATION PROFILER / ANALYZER KIT-1 19,420,000¿ø
  Consists of: 222-D Profiler / Analyzer Balancer (with Rechargeable Battery)
    160 Vibration Pickup
    048-15 Pickup Cable (15')
    055 Magnetic Pickup Base
    051 Probe Tip (7")
    296 Strobe Light
    049-15 Strobe Cable (15')
    21-014 AC Power Cord
    039 Accessory Case
    Set of Recording Pens (Red, Black, Green & Blue)
    Set of Profile Sheet Pads 8201A & 8202A
    Manuals and Calibration Certificate
MODEL 222-D VIBRATION PROFILER / ANALYZER KIT-2 (Kit-2 has 2-Pickup Sets) 20,120,000¿ø

VIBRATION PROFILER ACCESSORIES
051 PROBE (7") (for 158 and 160 Pickups) 60,000¿ø
055 MAGNETIC PICKUP BASE (for 158 and 160 Pickups) 190,000¿ø
056 VISE-GRIP PICKUP BASE (for 158 and 160 Pickups) 190,000¿ø
057 FISH-TAIL SHAFT STICK BASE (for 158 and 160 Pickups) 190,000¿ø
158 VIBRATION PICKUP (Velocity Type) 780,000¿ø
160 VIBRATION PICKUP (Integrated Electronic Velocity Type) 780,000¿ø
041-15 VIBRATION PICKUP CABLE (15') (for 158 Pickup) 190,000¿ø
041-25 VIBRATION PICKUP CABLE (25') (for 158 Pickup) 220,000¿ø
041-xx PICKUP CABLE (for 158 Pickup) xx = Length @ $1.30 per foot 150,000¿ø
048-15 VIBRATION PICKUP CABLE (15') (for 160 Pickup) 190,000¿ø
048-25 VIBRATION PICKUP CABLE (25') (for 160 Pickup) 220,000¿ø
048-xx PICKUP CABLE (for 160 Pickup) xx = Length @ $1.30 per foot 150,000¿ø
049-15 STROBE CABLE (15') (for 296 Strobe) 190,000¿ø
038 SHIPPING CASE (for Model 222-D) 770,000¿ø
21-014 AC POWER CORD (for Model 222-D) 70,000¿ø
296 STROBE LIGHT (4-pin connector) (for the Model 222-D) 1,930,000¿ø
31-007 RED RECORDING PEN (for Model 222-D) 7,000¿ø
31-008 BLACK RECORDING PEN (for Model 222-D) 7,000¿ø
31-009 GREEN RECORDING PEN (for Model 222-D) 7,000¿ø
31-010 BLUE RECORDING PEN (for Model 222-D) 7,000¿ø
8201A PROFILE SHEETS 200-2 K CPM 50-SHEETS (for Model 222-D) 10,000¿ø
8202A PROFILE SHEETS 200-200 K CPM 50-SHEETS (for Model 222-D) 10,000¿ø
GRAPH POLAR-GRAPH PAPER 25-SHEETS (Balancing Record Work Sheet) 7,000¿ø
METRIC METRIC UNIT CALIBRATION & NOMENCLATURE 031-777-1588
BAL-CP CALCULATOR FOR BALANCING (HP-48) 670,000¿ø
