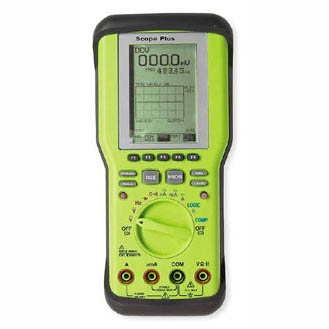

TP440 Oscilloscope Plus 4000 count true RMS DMM
    ¡¤ °í°´¼±È£µµ :
    ¡¤ Á¦Á¶»ç : Davis
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
Industrial motor controls, power quality, battery testing, PLC, NC machines, Uninterruptable power supplies
Applications:
Industrial motor controls, power quality, battery testing, PLC, NC machines, Uninterruptable power supplies, audio, video, industrial lighting, factory automation, line conditioners, voltage regulators, inverters, and gaming industry.
Features
  • Autoranging 4,000 Count True RMS DMM
  • 1MHz Oscilloscope (waveforms)
  • Trend Mode (graph)
  • In-circuit Component Test (signatures)
  • Logic Analyzer
  • Frequency Counter
  • Easy to use, continuous auto set
  • T-base button to manually adjust sweep speed (time/division) to shrink or enlarge the viewable waveform.
  • Glitch capture
  • Large easy-to-read display with backlight
  • Internal memory storage capability allows for up to eight separate waveforms to be stored
  • Optional A402 accessory allows user to download data or waveforms to PC for archiving, processing, and report generation
  • NiCad battery and power supply included
  • Three-year limited warranty
SPECIFICATIONS
Oscilloscope
Bandwidth 1MHz
Sample Rate 20 Mega samples per second (single shot)
Channels Single
Glitch Capture Yes
Trend Mode Yes
Auto Set Continuous
Waveform Memory 8 locations
Set-up Memory 8 locations
Viewing Area 160 x 240 pixels
Contrast Adjustable
DMM
True RMS Yes
Basic DC Accuracy 0.3%
DCV/ACV Up to 1,000 volts
DCA/ACA Up to 10 amps
Ohms Up to 40 Mega ohms
Capacitance Up to 400 microfarads
Frequency Up to 2 MHz
Catalog No. Description Price
TP440 TP440 scope plus, 4000 count true RMS DMM with wave form capabilities, insulated with alligator clips, power supply and NiCad battery 435,407
TP402 PC software and RS232 cable for TP440 93,557
TP403 Protective boot for TP440 31,133
TP900 soft zipper case for TP440 31,133
TP254 Low current adapter for model TP440 468,101
TP130 Current  shunt adapter for model TP440 85,754
TP301 Temperature adapter for model TP440 70,148
TP251 400 AC mV output adapter for the model TP440 82,633
TP256 400 AC/DC amp adapter for model TP440 132,572
TP296 1,000 AC/DC amp adapter for model TP440 133,295
