VIP 396 ÆdzÚÇü 3»ó Àü·Â ºÐ¼®±â
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
¡¡

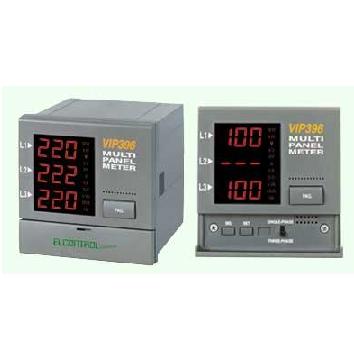

VIP 396 is a 96 DIN panel mount multi-function instrument ideal for the measurement and display of electrical parameters.

The large clear led displays showing the parameters and values are easily read under all lighting conditions.

The instrument displays up to 25 parameters (see table), and is suitable for installation in single phase, two phase and three phase systems. Connection is via sturdy 2.5 mm2 terminals and 5A secondary CTs for current measurement.

Operation is via simple pushbutton located on the front panel, with set up keys hidden behind a hinged cover.

SUPERIOR PERFORMANCE


• Replaces traditional analogue instruments with one digital package
• Improved accuracy and reliability
• Simplified installation reducing costs
• Superior performance on distorted waveforms

TECHNICAL CHARACTERISTICS


• Maximum size (mm): instrument: 96 x 96 x 115.4 - Cut-out template: 91 x 91
• Power supply: from network 230 V ~ or 115 V ~ ¡¾ 10% @ 50/60 Hz (4 VA)
• Display: Seven-segment 13 mm red LED¡¯s, 3 digit on 3 lines
• Voltmeter inputs: VL1, VL2, VL3, N up to 430 V ~ phase-neutral, 750 V ~ phase-to-phase, 35¡À400 Hz.
Voltmeter input impedance: 2 M
• Voltage input overload: max 850 V ~ phase-neutral
• Amperometric inputs: AL1, AL2, AL3, COM. Consumption 1 VA.
Three /5A external current transformer required
• Amper. input overload: max 7 A ~
• Number of scales: 1 voltage scale, 2 current scales
• Measurements: T.R.M.S. (true effective value) up to 24th harmonic (50 Hz), 20th (60 Hz)
• Precision: 1% reading per V and I; 2% for Power
• Suitable for connection to: Single phase or Three phase Star, Three phase Delta, or Diphase systems
• Weight of instrument: 0.6 Kg
• Protection level: instrument IP20, front panel IP30
• Ambient temperature range: -10¡ÆC ¡À + 60¡ÆC
• Relative humidity range (R.H.): from 20% to 80%. Condensation: non condensing.

FUNCTION


At power on, the VIP396 displays the last page selected before power off.
Using the selector switch, select the type of system connected: Single phase system (SINGLE-PHASE) or three phase or diphase system (THREE-PHASE).
Use the PAG key to scroll through the different measurement pages. To access SETUP mode, press at the same time the PAG and the SEL keys.
The parameters are programmed with the SEL and SET keys.
Use the PAG key to scroll through the various SETUP pages and return to the Measurement page.
The type of connection is configured in SETUP:
3 PH And n (Three phases with neutral, i.e. Star or 4 wires);
3 PH (Three phases without neutral, i.e. Delta or 3 wires);
2 PH = Two phase.

STANDARDS and REGULATIONS - CE Conformity declaration


The VIP396 family of products conforms to Directive 89/336/EEC (EMC) and to Directives 73/23/EEC - 93/68/EEC (LVD).
This instrument has been manufactured and tested in compliance with standards IEC 1010-1 430 V for Cat. III and protection level 2 according to IEC 664-664 A (Safety), EN500081-1, EN50082-2 and EN55022 (EMC).

25 Measures






¡¡

¡¡

¡¡

CHOICE OF THE MODELS


VIP396:
standard model without outputs
VIP396 485: RS485 serial output MODBUS ASCII or BCD or IEEE protocol. Transmits all the measures listed in the table below.
VIP396 485 4-20 mA: 2 analogic outputs 4-20 mA or 0-20mA;
RS485 serial output MODBUS ASCII or BCD or IEEE protocol. Transmits all the measures listed in the table below.
VIP396 ALM 485: 2 digital outputs for pulses, alarms or remote control;
RS485 serial output MODBUS ASCII or BCD or IEEE protocol. Transmits all the measures listed in the table below:



3 YEARS WARRANTY
