Ex
T 171-3 |
| 온,습도
데이터 로거 |
| 프로브
타입 |
습도:테스토
정전위 습도센서 |
| 온도:
NTC |
| 측정범위 |
0~100%RH/
(-10~50℃) |
| 정확도 |
±2%RH
(2~98%RH) |
| ±0.4℃
(-10~50℃) |
| 분해능 |
0.1%RH
(0~100%RH) |
| 0.1℃
(-10~50℃) |
| 작동온도 |
(-20~70℃) |
| 저장온도 |
(-40~85℃) |
| 밧데리타입 |
리튬밧데리 |
| 밧데리수명 |
약
5년 |
| 크기 |
131X68X26mm |
| 무게 |
305g |
| 재질 |
산화처리한
알류미늄 |
| 보증기간 |
2년 |
| 소프트웨어 |
Dos
version 3.1 Window 3.0 |
| 메모리 |
20,000 |
|

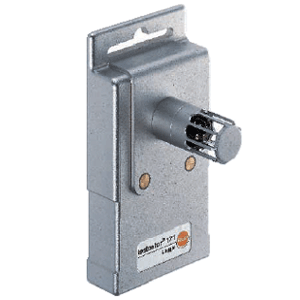

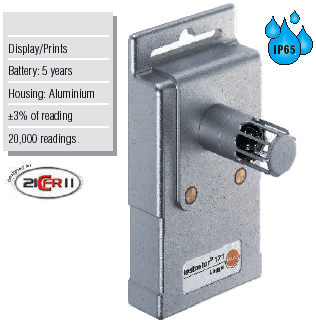

Electronic thermohygrograph
| testostor 171-3, a compact data logger with
an internal humidity/temperature probe
which can be quickly positioned directly on location.
The saved data can be documented on location on the Testo printer or can
be analysed on your PC via interface and software.
● Suitable for outdoor use
● Control and adjustment option
using adjustment set
※● On-site application:
Testo software for Palm OS®
replaces laptop/PC |
Checks relative humidity and temperature values in
switchgear units
Attachable: display, display with printing option, optical alarm display |
| testostor 171-3 |
testostor
171-3, humidity data logger for %RH, °C with starting magnet,
battery and calibration protocol
Part no. 0577 1713
|
|
| testostor 171-3 |
Set
1: without display
testostor 171-3 Set 1, incl.
humidity data logger for %RH, °C with starting
magnet, battery, calibration protocol and software with interface
Part no. 0563 1713
|
|
| testostor 171-3 |
Set
2: with display
testostor 171-3
Set 2, incl. humidity data logger for %RH, °C with starting
magnet, battery, calibration protocol, software with interface
and attachable display (without printing function) attachable
display (without printing function)
Part no. 0563 3176
|
|
|
| Ordering data
for Accessories |
Part
no. |
Display can be attached to data logger
For quick checks on location |
0554 0176
553,000 원 |
Display with print option, can be attached to data
logger
For quick checks on location |
0554
0175
722,000 원 |
Testo printer with 1 roll of thermal paper and 4
AA size batteries
Prints readings on location |
0554 0545
456,000 원 |
| Recharger for printer (with 4 standard rech. batt.) |
0554 0110
132,000 원 |
| Spare thermal paper for printer (6 rolls) |
0554 0569
38,000 원 |
Spare thermal paper for printer (6 rolls)
Measurement data documentation legible for up to 10 years
|
0554 0568
43,000 원 |
Optical alarm display for data logger, battery-operated
Warns if limits have been exceeded
|
0628 0025
571,000 원 |
Holder with lock for data logger
Theft-proof |
0554 1782
92,000 원 |
Lock for attached display
Suitable for holder 0554 1782 |
0554 1789
74,000 원 |
| ※testostor 171 data logger, connection for Palm OS®
In connection with ComSoft 3, Part no.: 0554 0830 |
0554 0805
485,000 원 |
ComSoft 3 - Professional with data management
Incl. database, analysis and graphics function, data analysis, trend
curve |
0554 0830
617,000 원 |
※ComSoft 3 - For requirements in accordance with
CFR 21 Part 11
Incl. database, analysis and graphics function, data analysis, trend
curve |
0554 0821
2,805,000 원 |
| Interface, attachable to data logger |
0554 1781
112,000 원 |
| Spare battery for testostor 171 |
0515 0018
87,000 원 |
| Control and humidity adjustment set 11.3%RH/75.3%RH
incl. adapter for humidity probes |
0554 0660
487,000 원 |
Stainless steel sintered cap, Ø 21 mm, can be screwed
onto humidity probe
Protection in case of high mechanical load and high velocities |
0554 0640
77,000 원 |
| Transport case (plastic) for data loggers (max. 5
off) and accessories |
0516 0117
316,000 원 |
DKD calibration certificate/Humidity
Humidity data logger; cal. points 11.3%RH and 75.3%RH at
+25°C; per channel/instrument |
0520 0246
689,000 원 |
ISO calibration certificate/Humidity
Humidity data logger; calibration points 11.3%RH and 75.3%RH
at +25°C; per channel/instrument |
0520 0076
268,000 원 |
ISO calibration certificate/Temperature
Temperature data logger; calibration points -8°C; 0°C; +40°C
per channel/instrument |
0520 0171
230,000 원 |
|
| Recommended kit: |
The set in the case
|
testostor 171-3 Set 1, incl.
humidity data logger for %RH, °C with starting magnet, battery, calibration
protocol and software with interface
Transport case (plastic) |
| Technical data |
| Probe type |
Testo humid. sensor, cap. |
NTC |
| Meas. range |
0... +100 %RH |
-10... +50 °C |
Accuracy
± 1 digit |
±3 %RH (+2... +98 %RH) |
±0.4 °C (-10... +50 °C) |
| Resolution |
0.1 %RH (0... +100 %RH) |
0.1 °C (-10... +50 ° |
| Memory |
20000 |
Measuring rate: 2 s to 24 h, selectable |
Material
/Housing |
Aluminium, anodized |
Battery life: up to 5 years |
| Oper. temp. |
-20... +70 °C |
Software: menu-driven from Microsoft Windows |
| Storage temp. |
-40... +85 °C |
95 / NT 4 Service pack 4 |
| Battery |
Lithium battery |
|
| Dimensions |
131x68x84 mm |
|
| Weight |
320 g |
|
| Warranty |
2 years |
|
|
|
| |
|
|
 | |
 |
|
 |
|
