testo 535 Part no. 0560 5350
    ¡¤ °í°´¼±È£µµ :
    ¡¤ Á¦Á¶»ç : Testo
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
testo 535, the efficient CO2 measuring instrument for measuring indoor air quality.
CO2 instrument with probe for HVAC fitters and engineers

Monitors indoor air quality e.g.
in open-plan offices and quickly prints data on Testo printer


Measures CO2 concentration in ingoing and outgoing air ducts
testo 535, the efficient CO2 measuring
instrument for measuring indoor air quality.
Bad air quality in rooms can lead to
tiredness, lack of concentration and illness (Sick Building Syndrome) due to high CO2 concentration (greater than 1000 ppm)

¡Ü Long-term monitoring based on maximum and mean calculation
¡Ü Long-term stable 2 channel
infrared sensor
¡Ü Highly accurate, highly efficient
¡Ü Repeated calibration is
unnecessary

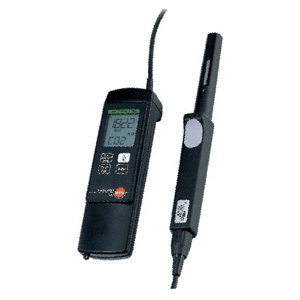

testo 535
testo 535, CO2 measuring instrument with permanently attached probe, batteries and
calibration protocol

Part no.   0560 5350   1,078,000 ¿ø


Ordering data for Accessories Part no.
TopSafe (indestructible protection case) with bench stand
Protects instrument from impact and dirt
0516 0183
55,000 ¿ø
Testo printer with 1 roll of thermal paper and 4 AA size batteries
Prints readings on location
0554 0545
456,000 ¿ø
Recharger for printer (with 4 standard rech. batt.)
Rechargeable batteries are recharged externally
0554 0110
132,000 ¿ø
Spare thermal paper for printer (6 rolls) 0554 0569
38,000 ¿ø
Spare thermal paper for printer (6 rolls)
Measurement data documentation legible for up to 10 years
0554 0568
43,000 ¿ø
Measurement data documentation legible for up to 10 years carrier loop, probe holder 0554 0550
38,000 ¿ø
Accessories set (for instrument with TopSafe) includes multi-function clip and probe holder 0554 0552
41,000 ¿ø
9V rechargeable battery for instrument
Instead of battery
0515 0025
50,000 ¿ø
Recharger for 9V rechargeable battery
For external recharging of 0515 0025 battery
0554 0025
138,000 ¿ø
Plug-in mains unit
For mains operation and recharging battery in instrument
0554 0088
110,000 ¿ø
Case
For secure storage of measuring instrument
0516 0191
50,000 ¿ø
Transport case (plastic) for instrument and accessories
For safe and orderly storage
0516 0184
113,000 ¿ø
ISO calibration certificate/CO2
CO2 probes; calibration points 0; 1000; 5000ppm
0520 0033
255,000 ¿ø

Technical data
Probe type 2 channel infrared sensor
Meas. range 0... +9999 ppm CO2
Accuracy
¡¾ 1 digit
¡¾(50 ppm CO2 ¡¾2% of mv) (0... +5000 ppm CO2)
¡¾(100 ppm CO2 ¡¾3% of mv) (+5001... +9999 ppm CO2)
Resolution 1 ppm CO2 (0... +9999 ppm CO2)
Measuring
medium
Air
Display LCD, 2 lines
Material/Housing ABS
Oper. temp. 0... +50 ¡ÆC
Storage temp. -20... +70 ¡ÆC
Battery type 9V block battery
Battery life 6 h
Dimensions 190x57x42 mm
Weight 300 g
Auto Off 10 min
Warranty 2 years
