Features |
- Oscilloscope - 100kHz bandwidth scope displays voltage or current waveform in graphical format
- PC Interface – RS232 interface and software for viewing, collecting and analyzing measured data
- Scope Features - Glitch capture and wide sweep rates
- DMM Features - MIN/MAX/AVG recording, 4000 count LCD display, Relative and Data Hold
- Memory - Store and recall up to 15 waveforms
- Functions - AC/DC Voltage and Current, Resistance, Capacitance, Frequency, dB, Duty Cycle, Period, Square Wave Generator, Logic test, Continuity and Diode
- Includes – Windows 95/98 software and cable, test leads, alligator clips, built-in stand, fuses, protective holster and 6 AA batteries
|
| |
| |
Ranges |
Max. Res. |
Basic Accuracy
(%rdg + digits) |
| DC Voltage |
400mV, 4, 40, 400, 1,000V |
0.1mV |
±(0.75% + 10d) |
| AC Voltage (TRMS) |
400mV, 4, 40, 400, 700V
|
0.1mV
|
±(1.0% + 10d) up to 400V
±(1.5% + 10d) up to 700V |
| DC Current |
400mA, 20A |
0.1mA |
±(1.2% + 10d) |
| AC Current (TRMS) |
400mA, 20A |
0.1mA |
±(1.5% + 10d) |
| Resistance (Ω) |
400, 4k, 40k, 400k, 4M, 40MΩ |
0.1Ω |
±(1.0% + 5d) up to 4MΩ |
| Capacitance |
4, 40, 400nF, 4μF, 40μF, 400μF, 4mF |
1pF |
±(3.0% + 5d) |
| Frequency |
10Hz to 100kHz |
0.1Hz |
±(1.0% + 5d) |
| Signal Output |
10Hz to 20kHz |
1 Hz |
±(1.2% + 5d) |
| Period/Pulse Width |
4 msec, 1 second |
1μSec |
±(3.0% + 5d) |
| Duty Cycle |
1 to 100% |
0.1% |
±(3.0% + 5d) |
| Power |
6 AA batteries (6 hours); Optional AC adaptor and rechargeable batteries |
| Sample Rate |
Measurements: 4/second; Bargraph: 7/second |
| Dimensions/ Weight |
3.6 x 7.4 x 2.2" (91 x 188 x 56 mm)/ 1.0 lbs (450g) |
| Catalog No. |
Description |
Price |
| EH381265 |

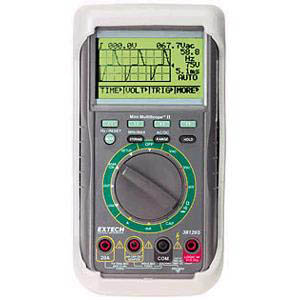

Mini DMM/Oscilloscope |
356,830 |
| EH381264 |
NiCad Batteries & 117VAC Charger |
64,998 |
| EH899 |
Vinyl pouch case with shoulder strap |
25,033 |
| EH381277 |
Temperature Adapter |
51,711 |
| EH445603 |
Humidity Adapter |
218,874 | | |
|
|
 | |
 |
|
 |
|
