The VersaProbe¢â captures both Total Dose and Peak Irradiance.

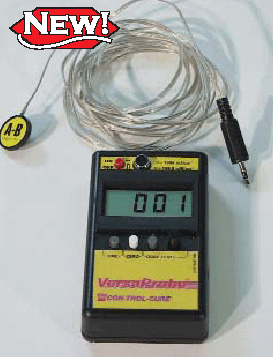

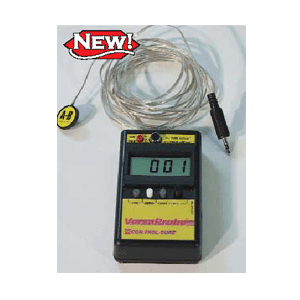

VERSAPROBETM RADIOMETER

The CON-TROL-CURE¢ç VersaProbe¢â handheld radiometer/dosimeter is designed to monitor UV light sources used in a wide range of UV curing applications. The VersaProbe¢â captures both Total Dose and Peak Irradiance. VersaProbe¢â offers broad-band UV-A+B measurements (comes standard with unit) and narrow-band UV-A and UV-B (additional probes required). The VersaProbe¢â also comes standard with a built in UV-A+B sensor for direct work surface measurements. When the VersaProbe¢â is used as a broad-band (A+B) radiometer, it sees UV energy from 280nm-400nm, critical to many curing applications. When used as a narrow-band radiometer, the VersaProbe¢â sees only the lamp energy output in the UV-A or UV-B range. Calibrated using a NIST traceable standard.

SPECIFICATIONS:
¡Ü Response Range 280-400nm (UV-A+B)
¡Ü Conv. Rate 2.0 readings/Second
¡Ü Display 3.5 digit LCD (digit size .5" high)
¡Ü Size 4.4"L x 2.6"W x 1.1"D (112 mm x 66 mm x 30 mm)
¡Ü Weight 6.0 oz (170 g) incl. Battery
¡Ü Power Source 9V DC Battery or optional adaptor
   Radiometer Mode: (UV-A+B)
¡Ü Irradiance Range 0-199.0mW/cm2
¡Ü Resolution 0.1mW/cm2
   Dosimeter Mode: (UV-A+B)
¡Ü Dose Range 0-1999mJ/cm2
¡Ü Resolution 1mJ/cm2
¡Ü Max Measurement Time 200 s

Part Number Description Units
M007-092 VERSAPROBETM EACH
M007-093 VERSAPROBE A PROBE¢â EACH
M007-094 VERSAPROBE B PROBE¢â EACH
