A012-025 CON-TROL-CURE¢ç PORTABLE 2¡± CURING SYSTEM
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
The system is designed for color matching, lab work, in-house prototype work, on-site demonstrations

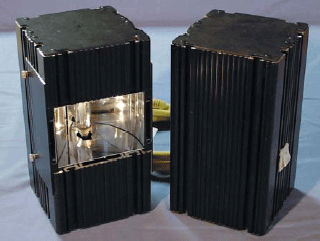

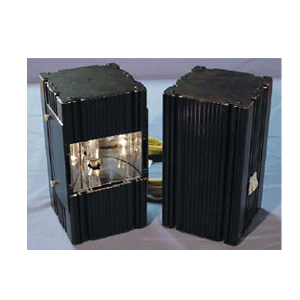

CON-TROL-CURE¢ç PORTABLE 2¡± CURING SYSTEM

UV Process Supply proudly offers the CON-TROL-CURE¢ç Portable 2¡± UV Curing System: a detached 2¡± curing lamp connected to the power supply by a 6¡¯ quick-disconnect power cable.

The system is designed for color matching, lab work, in-house prototype work, on-site demonstrations, and as a starter unit for those interested in learning more about UV clear coating, adhesives, casting/potting, and conformal coatings. It offers users the opportunity to work on products via either hands-on production or R&D on their
own equipment. Results of tests can be immediately translated to production system requirements.

This 110V unit delivers up to 200W/in of power over a 365nm broad band range. The 2¡± effective curing area emits focused light for use with quick curing, and can be positioned to emit defocused light for use with 3-D objects. It can be handheld without the light shield for scanning large areas. Important: The use of goggles is recommended as a safety precaution.

Economical, compact, and easy to use, the Portable 2" UV Curing System weighs 24.5 lbs (power supply: 17.5 lbs, lamp: 7 lbs) and each component measures only 5.25" H x 9.5" W x 5.25" D. The 110V unit delivers power up to 200 WPI over a 365nm broadband range. The system features a simple on/off switch. Custom extended power cables are available by special order.

STANDARD FEATURES:
¡Ü 200W/in nominal output
¡Ü Handheld portability
¡Ü Compact design ideal for use within confined environments
¡Ü Plugs into a standard 110V outlet
¡Ü Low-cost design ideal for repairs, prototype work, R&D, etc.

Part Number Description Units
A012-025 2¡± PORTABLE CURING SYSTEM EACH
