A005-016 FANS FOR UV SYSTEMS
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
Effective reflector, lamp housing and power supply cooling is critical to ensuring consistent cure results

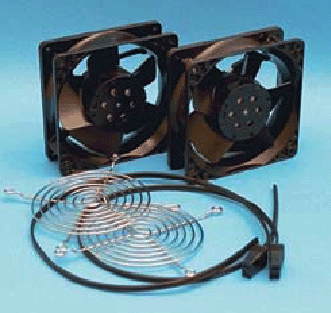

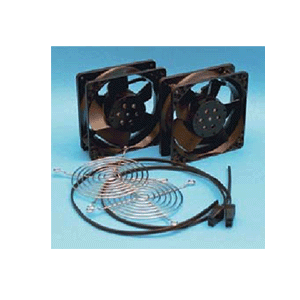

FANS FOR UV SYSTEMS

Effective reflector, lamp housing and power supply cooling is critical to ensuring consistent cure results and equipment performance. These highly durable cooling fans can be fully integrated into any current UV lamp housing or power supply. Exceptional quality rotor motor
has yielded years of exceptional performance. Offers optimum cooling and extended in-field life. Can be fully integrated with speed controllers. Locked rotor protection. Must be grounded in accordance with current regulations. ISO 9001 compliant. UL, CSA, VDE approved. Finger guards and electrical plugs must be ordered
separately.

The High Performance Cooling Fan (A005-016) is ideal for larger reflectors, lamp housings and power supplies. At 230V, it provides maximum air volume for excellent cooling results. Field-tested, allmetal construction has produced years of exceptional performance. Allows full integration into any curing system and/or speed controller.

The Standard Cooling Fan (A005-007) incorporates a light, internal rotor motor and plastic impeller for quick starts at full speed. At either 220V or 240V, it is ideal for power supplies and quick starting curing systems requiring little to no warm-up period. Highly durable, low-vibration metal housing easily integrates into any curing system housing or power supply encasement.

The smaller, Mini Cooling Fan (A005-001) has the same light, internal rotor motor and plastic impeller as the Standard Cooling Fan, but in a smaller footprint. At 115V, this efficient model is a perfect replacement unit for our Portable 2" Systems (A012-025, p.143) and other systems where cooling is required, but space is a limiting factor.

Part Number Description Dimensions
A005-016 HIGH PERFORMANCE COOLING FAN 4-5/8"L x 4-5/8"W x 1-1/2"H (117 mm x 117 mm x 38 mm)
A005-007 STANDARD COOLING FAN 4-5/8"L x 4-5/8"W x 1-1/2"H (117 mm x 117 mm x 38 mm)
A005-001 MINI COOLING FAN 3-5/8"L x 3-5/8"W x 1"H (92 mm x 92 mm x 25 mm)
A005-005 FINGER GUARD
A005-006 ELECTRICAL PLUG
