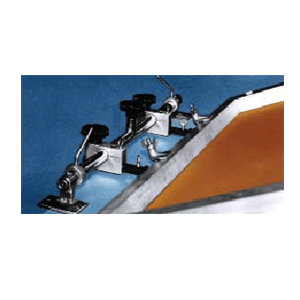

SCREEN FRAME CLAMP UNIT
Precision micrometer adjustments are included with the machined steel, fully
adjustable Screen Frame Clamp. Each unit comes complete with etched micrometer
adjustment marks
for easy reference. |
The Screen Frame Clamp provides tight registration
tolerances for high quality reproduction. Its "XYZ" control system
locks in place for easy and excellent repeatability.
Easily mounted to any standard vacuum table or base, these clamps can be
used with metal or wood frames, 5/8" to 2" thick. 4 standard maximum
screen frames are available. Frames not included.
| Part Number |
Description |
Maximum Screen
Size |
Units |
| E144-017 |
SCREEN FRAME CLAMP 26 |
20" x 26" |
EACH |
| E144-018 |
SCREEN FRAME CLAMP 30 |
26" x 30" |
EACH |
| E144-019 |
SCREEN FRAME CLAMP 50 |
38" x 50" |
EACH |
| E144-020 |
SCREEN FRAME CLAMP 58 |
52" x 58" |
EACH |
|
| |
|
|
 | |
 |
|
 |
|
