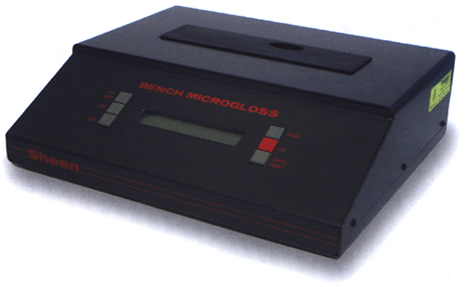

BENCH GLOSSMETER |
This bench top unit is designed for the gloss measurement of curved or specially shaped surfaces difficult to measure with pocket instruments. The flat top allows large samples to be conveniently and accurately placed onto the glossmeter for measurement.
Optional alignment guides allow small pieces to be precisely positioned onto the small measurement orifice (SO model) for optimal reproducibility.
Different versions available:
● 60˚: measurement area: 9 × 15mm, range 0-1000 GU autoranging (normal and mirror gloss)
● 60˚/SO: small orifice: 2 × 2mm, range 0-1000 GU autoranging (normal and mirror gloss)
● 20˚ & 60˚: for general purpose, medium and high gloss surfaces
● 75˚: for the paper industry.
Features
● Automatic calibration
● Statistics
● Easy to use, clear LCD display
● Memory: 4000 readings
● Powered by mains/built-in rechargeable battery
● RS232 output to printer or PC (ASCⅡformat)
● Optional remote footswitch for hands free operation
● Standard package: Instrument, certified calibration standard. rechargeable batteries & charger.
|
| STANDARDS |
| See table page 10 | |
Ordering references
| BENCH GLOSSMETER |
| 157/60 |
Bench Glossmeter 60˚ |
| 157/60/SO |
Bench Glossmeter 60˚ - Small Orifice |
| 157/20/60 |
Bench Glossmeter 20 & 60˚ |
| 157/75 |
Bench Glossmeter 75˚ |
| OPTIONAL ACCESSORIES |
| 157/022/S |
Footswitch for all models |
| 157/034/A |
Alignment guide - factory fitted (only for 157/60/SO) to be placed at the time of ordering | | | |
|
|
 | |
 |
|
 |
|
