This portable instrument brings to process QC efficient evaluation of Orange Peel & DOI. |
 |

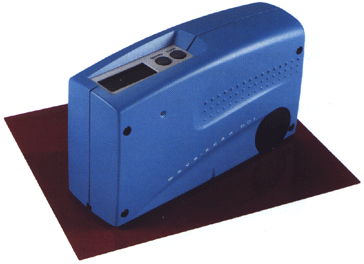

WAVE-SCAN DOI | This portable instrument brings to process QC efficient evaluation of Orange Peel & DOI. A laser beam scans the specimen at 60¢ª over a defined length and collects the optical profile. In order to simulate the human eyes resolution, orange peel structures are divided into different levels, within a "spectrum" ranging from 0.1 to 30 mm wave lengths. In addition, a CCD camera detects at 20¢ª the ultra-short waves which cause surface "dullness", related to the DOI measurements. Data is transferred to the powerful Auto-chart software for futther analysis and processing.
Features ¡Ü Optimal correlation to the visual perception of Orange peel & DOI ¡Ü Output of Long Waves & Short Waves, and DOI ¡Ü Independent of paint system and refractive index ¡Ü Reliable measurements on test panels or curved parts ¡Ü Suitable for solid and metallic coatings ¡Ü One-hand operation, self calibration ¡Ü User-defined sampling procedure ¡Ü Memory 599 values with zone identification ¡Ü Data analysis & management with Auto-chart software ¡Ü Standard package: Instrument, certified reference tile, protective holder, Auto-chart software & PC cable, operating manual, 4 ¡¿ AA 1.5V batteries, and carrying case.
Auto-chart software ¡Ü Instrument programming: - object identification: car model, colour, paint line - definition of measurement sequence and zones identification ¡Ü Analysis with Excel¢â and Access¢â: - trend graph, products comparison, history, structure "spectrum" |
Performance ¡Ü Structure spectrum (mm): dullness: <0.1, Wa: 0.1-0.3, Wb: 0.3-1, Wc: 1.0-3.0, Wd: 3.0-10, Wc: 10-30 ¡Ü DOI, Long wave, Short wave ranges: 0-100 ¡Ü Repeatability: 4%, Reproducibility: 6% ¡Ü Scan length: 50, 100, 200 mm ¡Ü Resolution 375 measurement points/cm ¡Ü Object curvature: >1m radius.
Ordering references
WAVE-SCAN DOI |
BG4816 |
Wave-Scan DOI |
OPTIONAL ACCESSORIES |
BG4401 |
USB Adaptor |
BG4817 |
Reference Tile to check performance (certified) |
BG4825 |
Crystal clear tape for low gloss surfaces | | | |
|
|
 | |
 |
