TriLink
The Triple Platform Data Logger

¡¡

TriLink is the latest innovative user friendly offering from Fourier that leverages cutting edge wireless data logging for stand alone or field monitoring. TriLink brings powerful monitoring to the palm of your hand and enables communication with all types of current and future PCs and Pocket PCs.

Application Examples

Laboratory
The TriLink has been used for its accurate humidity and temperature monitoring capabilities. Data is collected via Bluetooth technology simply by downloading onto the PocketPC, enabling constant and efficient environment monitoring.

Heavy Industry Processing
High resolution data collection and analysis is key here for environments where wires can't be used due to dynamic machinery activity. Data can be automatically downloaded at a distance or even gathered online. What's more, multiple monitoring of cradles is possible with all the data received online using one central PC.
¡¡


Exclusive
  • Bluetooth wireless communication
  • Sampling of up to 4 sensors
  • High 12-bit sampling resolution
  • Fast sampling rate of up to 20,800 samples per second
  • 256K internal sample memory
  • Available graphic analysis software for PC and Pocket PC
  • Multi-point sampling for larger working environments

Specifications

Click here to view TriLink Specifications (PDF Format)



TriLink
TriLink Software

¡¡
Exclusive Fourier Software
for Pocket PC devices
Via the wireless Bluetooth communication link, the TriLink can communicate with desktop and notebook computers, handhelds and more, and interface with Fourier's new DaqLab.

¡¡
DAQLAB¢â   Try me!
Powerful analysis software for Windows¢ç 95/98/2000/XP/NT

Everything In The Palm Of Your Hand

DAQLAB provides advanced data analysis and processing. This innovative program enables the user to operate and configure all the DAQPRO functionality. DAQPRO works as a stand alone data logger, as well as connecting to the PC.




Software Highlights

  • Fast data download from DAQPRO
  • Data displayed in numeric or graphic displays
  • Graphic analysis tools such as zoom and markers
  • Storage of selected data on disk files
  • Hard copy printing of collected data
  • Direct data export to Excel
  • Online retrieval and display of data in realtime
  • Incorporates advanced data processing functions
  • Enables set-up and calibration of DAQPRO on the go

Download the DaqLab feature-specific tours:

Auto Setup
Cradle Map
Edit Graph
Format Graph
Meters
Alalysis - Smooth
Alalysis - Fit and Function

¡¡

TriLink Data LoggerTriLink
TriLink Sensors

¡¡
The TriLink has the ability to convert to 4 external sensors 4-20mA, 0-5V and stainless steel temperature sensors. Through the current and voltage sensors users are able to monitor all industrial transmitters. Users can define their sensors and view readings in the sensor parameter units.

¡¡
External Sensors include:
  • DT241 Temperature -50 - 150 ¨¬C temperature
  • CODE Pulse Counter
  • DT234 Current 4-20mA
  • DT228 Voltage 0-5V
  • DT041 RH sensor [ Download PDF File ]

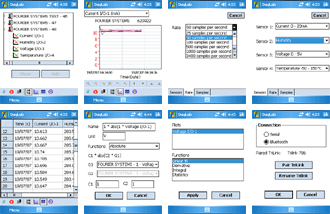

DaqLab for Pocket PC - click image to enlrageTriLink
TriLink Software

¡¡
Exclusive Fourier Software
for PocketPC devices
Via the wireless Bluetooth communication link, the TriLink can also connect to PocketPC devices as well as Bluetooth enabled desktop and notebook computers, via Fourier's DaqLab interface.

DaqLab for PocketPC runs on PocketPC 4.2 (with Broadcom stack) and PocketPC WM5 (with Microsoft stack).

¡¡
DAQLAB¢â
Powerful analysis software for Windows¢ç 95/98/2000/XP/Vista

Everything in the Palm of your Hand

DaqLab provides advanced data analysis and processing. This innovative program enables the user to operate and configure all the DaqPRO functionality. DaqPRO works as a stand alone data logger, as well as when connected to the PC.




Software Highlights

  • Fast data download from DaqPRO
  • Data displayed in numeric or graphic displays
  • Graphic analysis tools such as zoom and markers
  • Storage of selected data on disk files
  • Hard copy printing of collected data
  • Direct data export to Excel
  • Online retrieval and display of data in realtime
  • Incorporates advanced data processing functions
  • Enables set-up and calibration of DaqPRO on the go




¡¡
