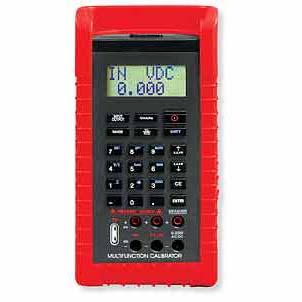

ML1000 Multifunction Calibrator
    ¡¤ °í°´¼±È£µµ :
    ¡¤ Á¦Á¶»ç : DAVIS
    ¡¤ Á¦Ç°¹øÈ£:ML1000
    ¡¤ ½ÃÁß°¡°Ý : ¿ø
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
Features
  • Excellent accuracy ¡¾0.5¡Æ T/C ¡¾0.3¡ÆC RTD and 0.015% electrical, volts, amps and frequency
  • Choose either read or source modes
  • Compatible with all Fluke pressure modules
  • Operates with external pressure modules
  • 10 T/C types; 8 RTD types plus YSI 400 series thermistor (medical applications)
  • Full function 4-20 mA read, source, simulate and read/power modes with 0.015% reading accuracy
  • Source 0-20 volts or read 0-20 volts with 0.015% of reading accuracy
  • Measure 0-250 VDC or VAC
  • Direct keyboard entry allows for quick output changes
  • Store up to nine setpoints for each output function
  • RTD function works with all pulsed XMTR¡¯s
  • RS232 Interface
  • Each unit includes test leads, carrying case, 4 AA alkaline batteries, NIST Traceable Certificate and instruction manual


SPECIFICATIONS

Operating Temp

0 to 50¡ÆC
Storage Temp -20 to 60¡ÆC
Stability 0.005% F.S. ¡ÆC outside of 23¡ÆC ¡¾5¡ÆC
Pressure Ranges Compatible with all Fluke 700 Series pressure modules
T/C Ranges J, K, T, E,R, S, N, B, L, U including 10 to 75 mV
RTD Ranges PT 385 (100, 200, 500, 1000 Ohms)
Pt 392, JIS, Ni 120, CU10, YSI 400
Ohms Ranges 0 to 400.00 and 400.0 to 4000.0
mA Range 0 to 24.000 mA
Voltage  (Low) Input/Output 0-20.000 V
(High) Input only 0-250 VDC or VAC
Frequency   0-1000.0 CPM
0-1000.0 Hz
0-10.00 KHz
Continuity 0 to 400.0 Ohms, audible tone when under 10 Ohms
Operating Temp. -10¡ÆC to 50¡ÆC
Storage Temp. -40¡ÆC to 60¡ÆC
Loop Power 4 AA Alkaline Cells, 25 hours typical operating time
Size 7.5" x 4" x 1.5"

CAT NO. MODEL DEscRIPTION AVAIL PRICE
ML1000   MC-1000   MULTI-FUNCTION CALIBRATOR   Yes   2,377,620
ML700   700MA   OPTIONAL ADAPTER FOR PRESSURE MODULES FOR High Accuracy Multi-Function Calibrator   Yes   110,068



Pressure Modules (Must be used with ML700 adapter)
ML342102   CC572   OPTIONAL Carrying Case FOR High Accuracy Multi-Function Calibrator   Yes   89,964
ML342103   1001-9V   OPTIONAL AC ADAPTOR FOR High Accuracy Multi-Function Calibrator   Yes   40,392
