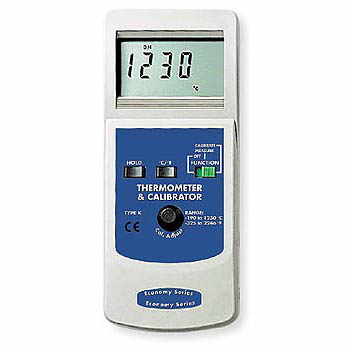

| The ML29123 Thermometer/Thermocouple Calibrator provides the functions of both a Type K thermometer and Type K thermocouple calibrator. The ML29123 features a wide -199 to +1230 °C (-325 to +2246 °F) measurement and calibration range. |
| |
|
Features |
- Two-in-one meter: Type K thermometer & Type K thermocouple
- Wide range: -199 to +1230 °C (-325 to +2246 °F)
- Built-in, high precision, temperature linearity compensation circuit
- °C & °F select & data hold functions for temperature measurement
- °C & °F button selection for temperature calibration
- Temperature measuring input to meet any standard Type K (NiCr-NiAl) probe
- Fitted with standard Type K mini-plug socket
- Large LCD display
- Operates on 006P DC 9V battery
- RS232 PC serial computer interface
|
| | | SPECIFICATIONS
| (23 °C ±5 °C; specifications are tested under the environment RF Field Strength < 3V/M and frequency <30 MHz) |
| Display |
LCD display with 13 mm
(0.5) digit size |
| Measure/Calibration Range |
-199 to +1230 °C /-325 to +2246 °F |
|
Thermometer
Sensor Type
Input Impedance |
Thermocouple K (NiCr-NiAl)
10 MegOhm
|
| Sampling Time |
Approx. 0.4 seconds |
| Data Output |
RS232 PC serial computer interface |
| Overall Accuracy |
±(1 % ± 2 °C) / ±(1 % + 5 °F) max. |
| Operating Temperature |
0 to 50 °C (32 to 122 °F) |
| Operating Humidity |
Less than 80% RH |
| Power Supply |
9V DC battery |
| Weight |
280 g /0.62 LB (with battery) |
| Dimensions |
185 x 78 x 38 mm (7.3 x 3.0 x 1.5 inch) |
Notes:
1. The accuracy specification of the thermometer applies only to the instrument itself and does not include T/C errors. |
| CAT NO. |
 |
MODEL |
|
DEscRIPTION |
|
AVAIL |
|
PRICE |
| ML29123 |
|
LTC-920 |
|
Thermocouple Calibrator |
|
Yes |
|
438,804 |
| ML29114 |
|
LCA-05A |
|
OPTIONAL Carrying Case FOR Thermometer/Thermocouple Calibrator |
|
Yes |
|
33,048
|
| ML29121 |
|
LSW-U101 |
|
OPTIONAL Windows Software FOR Thermometer/Thermocouple Calibrator |
|
Yes |
|
86,292
|
| ML29122 |
|
LUPCB01 |
|
OPTIONAL RS232 Cable FOR Thermometer/Thermocouple Calibrator |
|
Yes |
|
40,392
|
| ML29115 |
|
TP-K01 |
|
OPTIONAL Bead Probe FOR Thermometer/Thermocouple Calibrator |
|
Yes |
|
16,524
|
| ML29116 |
|
TP-K02 |
|
OPTIONAL Immersion Probe FOR Thermometer/Thermocouple Calibrator |
|
Yes |
|
73,440
|
| ML29117 |
|
TP-K03 |
|
OPTIONAL Surface Probe FOR Thermometer/Thermocouple Calibrator |
|
Yes |
|
104,652
|
| ML29118 |
|
TP-K04 |
|
OPTIONAL Piercing Probe FOR Thermometer/Thermocouple Calibrator |
|
Yes |
|
104,652
|
| ML29119 |
|
TP-K05 |
|
OPTIONAL Surface Probe FOR Thermometer/Thermocouple Calibrator |
|
Yes |
|
152,388
|
| ML29120 |
|
TP-K06 |
|
OPTIONAL Air and Gas Probe FOR Thermometer/Thermocouple Calibrator |
|
Yes |
|
111,996
| | |
|
|
 | |
 |
|
 |
|
