PROVA SS1 ¼Ö¶ó¼¿/¸ðµâ ¼º´É½ÃÇè±â set
    ¡¤ °í°´¼±È£µµ :
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)

¼Ö¶ó¸ðµâ ½ÃÇèÀåºñ

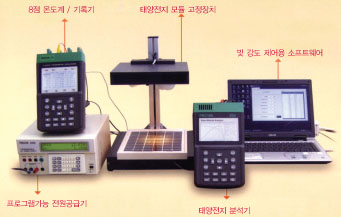

±¸¼º: 8ch ¿Âµµ ±â·Ï°è, PROVA 200 ¼Ö¶ó¸ðµâ ½ÃÇè±â (60V, 6A),  ³ë±¤ÀåÄ¡ ¹× ÇÁ·Î±×·¥ ÄÜÆ®·Ñ·¯,  ¼ÒÇÁÆ®¿þ¾î

http://www.korins.kr/maker/tes/tes_SS1.pdf

Á¦Ç°±¸¼º :
- Sloar Cell/Panel Fixture with Halogen LAmp
and Thermocouple and Pyranometer
- Light Intensity Control Software(PC not included)
- PROVA-200 : Solar Module Analyzer
- PROVA-800 : 8 Input Thermometer / Datalogger
- PROVA-8300 : Programmable Power Supply

I-V Curve Test for Solar Cell.
Single Point I-V Test.
Maximum Solar Power (Pmax) search by auto-scan (60V, 6A).
Maximum Voltage (Vmaxp) at Pmax.
Maximum Current (Imaxp) at Pmax.
Voltage at open circuit (Vopen).
Current at short circuit (Ishort).
I-V curve with cursor.
Efficiency (%) calculation of solar panel.
Scan delay (parameter) setting. (0 ~ 9999 mS)
Solar panel dimension (parameter) setting.(0.001 ~ 9999 Cm©÷)
Standard light source (parameter) setting.(250¡¢500¡¢750¡¢1000 W/m©÷)
Min. power (parameter) setting and alarm. (1 mW ~ 100 W)
Real time data logging.
Rechargeable batteries; LCD displays low battery.
RS232C (to USB Bridge) cable for PC.
Option: portable thermal printer (model: 300XP) to print (hardcopy) the LCD displays of Solar Module Analyzer.
PROVA 200 Solar Module Analyzer

  • I-V Curve Test for Solar Cell.
  • Maximum Solar Power (Pmax) Search by Auto-scan (60V, 6A)
  • Maximum Voltage (Vmaxp) at Pmax
  • Maximum Current (Imaxp) at Pmax
  • Voltage at open circuit (Vopen)
  • Current at short circuit (Ishort)
  • I-V curve with cursor
  • Optional printer (model: 300XP) to hardcopy I-V curve
  • Calculation of Efficiency (%)
  • Manual single point test

¡¡

¡¡
Electrical Specifications (23¡É¡¾5¡É)

DC Voltage:
¡¡
Range Resolution Accuracy
0–10V
0.001V
¡¾1% ¡¾ 18 dgts
10–60V
0.01V
¡¾1% ¡¾ 18 dgts
DC Current:
¡¡
Range Resolution Accuracy
0–1A
0.1mA
¡¾1% ¡¾ 18 dgts
1–6A
1mA
¡¾1% ¡¾ 18 dgts
General Specifications:
Battery Type:
1.2V AA rechargeable battery x 8(2700mAh)
AC Adaptor:
AC 110V or 220V input,
DC 12V/3A output
Dimension:
257 (L) x 155 (W) x 57 (H) mm
10.1 (L) x 6.1 (W) x 2.2 (H) in
Weight:
1160 g / 40.9 oz
(battery included)
Accessories:
Users manual x 1
1.2V AA rechargeable battery x 8
1 set of Kelvin clips (2 clips, 5A max.)
¡¡
PROVA-300XP Portable Thermal Printer

  • Portable Field Printing for Certificate
  • Text and Graphics
  • Two Selectable Fonts (5*7 and 8*16)
  • Programmable text Header and Footer
  • Battery and AC Power Adaptor
  • RS-232C Interface (Optional RS-232C to USB Bridge)
  • Fixed Interval Continuous Printing(5, 30, 60, 300 seconds)
Printing Mechanical Specification
Method
Thermal Dot Printing
Dot Per Line
8 (vertical) * 166 ( horizontal )
Fonts
5*7 and 10*15
Dot Pitch
0.35 mm ( vertical ) , 0.28mm ( horizontal )
Character Size
1.4 * 2.4 mm ( 5 * 7 ), 2.8 * 4.6 mm ( 10 * 15 )
Characters Per Line
27 (5 * 7 ), 16 ( 10 * 15 )
Printing Contrast
Auto and User Selectable
Printing Width
46mm
Printing Speed
0.8 lines / second
Printing Life
500.000 lines
Paper Width
57 mm

Communication

Interface RS-232C (9600,8,1,N)
Receiving Buffer 9K bytes
Character set ASCII International
Graphics Bit Map
Option USB to RS -232C Bridge

Mechanical and Environmental Specification

Operating Temperature -10¡É ~ 50¡É
Storage Temperature -20 ¡É ~ 60¡É
Humidity 0 ~ 90% RH (Non-condensing)
Batteries 8*1.5V
AC Power Adaptor DC 12V
Dimension 95mm(W)*135mm(D)*55mm(H)
Weight 440g ( 8 batteries included)
