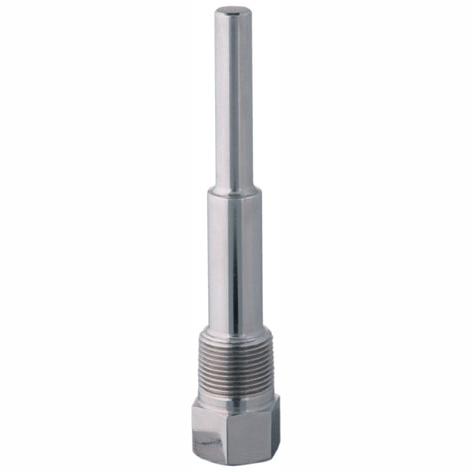

WK75-TH2R-015-BR 3/4" Thermowell
    ¡¤ °í°´¼±È£µµ :
    ¡¤ Á¦Á¶»ç : DAVIS
    ¡¤ ÆǸŰ¡°Ý : ¿ø
    ¡¤ Æ÷ ÀÎ Æ® : Á¡
    ¡¤ ¼ö ·® : °³


¡á
ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á
¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.
                    (0)                     (0)                     (0)
Thermowells for temperature instruments are recommended for all process systems where pres-sure, velocity or viscous, abrasive and corrosive materials are present individually or in combina-tion. WIKA¡¯s thermowells have easy to install connections are available in a variety of sizes, lengths, and materials. WIKA¡¯s thermowells pro-vide a safe separation between the process and the instrument and will allow instrument instal-lation and removal without affecting the process. A properly selected thermowell will protect the temperature instrument from possible damage re-sulting from these process variables.

Catalog No.

Process
Connection

Type/Bore
Diameter

Lag

Shank
Design

Standard
"U" Dimensions

WK75-TH2R-015-BR

3/4"

Threaded / .260

None

Reduced

1-5/8"

WK75-TH2R-015-CC

3/4"

Threaded / .260

None

Reduced

1-5/8"

WK75-TH2R-015-SS

3/4"

Threaded / .260

None

Reduced

1-5/8"

WK75-TH2R-025-BR

3/4"

Threaded / .260

None

Reduced

2-1/2"

WK75-TH2R-025-CC

3/4"

Threaded / .260

None

Reduced

2-1/2"

WK75-TH2R-025-SS

3/4"

Threaded / .260

None

Reduced

2-1/2"

WK75-TH2T-025-CC

3/4"

Threaded / .260

None

Tapered

2-1/2"

WK75-TH2T-025-SS

3/4"

Threaded / .260

None

Tapered

2-1/2"

WK75-TH2LR-025-SS

3/4"

Threaded / .260

Standard

Reduced

2-1/2"

WK75-TH2R-045-BR

3/4"

Threaded / .260

None

Reduced

4-1/2"

WK75-TH2R-045-CC

3/4"

Threaded / .260

None

Reduced

4-1/2

WK75-TH2T-045-SS

3/4"

Threaded / .260

None

Tapered

4-1/2"

WK75-TH2T-045-CC

3/4"

Threaded / .260

None

Tapered

4-1/2"

WK75-TH2T-045-SS

3/4"

Threaded / .260

None

Tapered

4-1/2"

WK75-TH2LR-045-SS

3/4"

Threaded / .260

Standard

Reduced

4-1/2"

WK75-TH2R-075-CC

3/4"

Threaded / .260

None

Reduced

7-1/2"

WK75-TH2R-075-SS

3/4"

Threaded / .260

None

Reduced

7-1/2"


CAT NO. MODEL DEscRIPTION AVAIL PRICE
WK75-TH2R-015-BR   75-TH2R-015-BR   3/4" Thermowell   Yes   49,572
WK75-TH2R-015-CC   75-TH2R-015-CC   3/4" Thermowell   Yes   53,244
WK75-TH2R-015-SS   75-TH2R-015-SS   3/4" Thermowell   Yes   58,752
WK75-TH2R-025-BR   75-TH2R-025-BR   3/4" Thermowell   Yes   62,424
WK75-TH2R-025-CC   75-TH2R-025-CC   3/4" Thermowell   Yes   47,736
WK75-TH2R-025-SS   75-TH2R-025-SS   3/4 Thermowell   Yes   55,080
WK75-TH2T-025-CC   75-TH2T-025-CC   3/4" Thermowell   Yes   47,736
WK75-TH2T-025-SS   75-TH2T-025-SS   3/4" Thermowell   Yes   55,080
WK75-TH2LR-025-SS   75-TH2LR-025-SS   3/4" Thermowell   Yes   67,932
WK75-TH2R-045-BR   75-TH2R-045-BR   3/4" Thermowell   Yes   75,276
WK75-TH2R-045-CC   75-TH2R-045-CC   3/4" Thermowell   Yes   42,424
WK75-TH2T-045-SS   75-TH2T-045-SS   3/4" Thermowell   Yes   66,096
WK75-TH2T-045-CC   75-TH2T-045-CC   3/4" Thermowell   Yes   58,752
WK75-TH2T-045-SS   75-TH2T-045-SS   3/4" Thermowell   Yes   66,096
WK75-TH2LR-045-SS   75-TH2LR-045-SS   3/4" Thermowell   Yes   108,324
WK75-TH2R-075-CC   75-TH2R-075-CC   3/4" Thermowell   Yes   84,456
WK75-TH2R-075-SS   75-TH2R-075-SS   3/4" Thermowell   Yes   108,324
